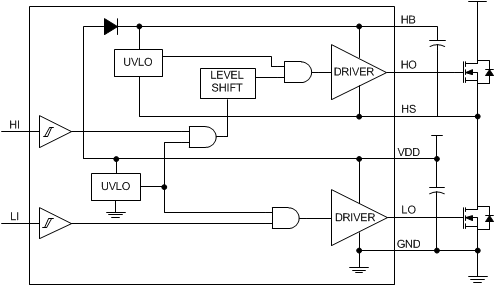

LM5101C - 产品图解：
LM5101C-1A 高电压高侧和低侧闸极驱动器
LM5101C-半桥驱动器-MOSFET和IGBT栅极驱动器-电源管理
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - LM5101C介绍

LM5101C - 1A 高电压高侧和低侧闸极驱动器

LM5101C是TI德州仪器公司的一款半桥驱动器产品，LM5101C是1A 高电压高侧和低侧闸极驱动器，本站介绍了LM5101C的封装应用图解、特点和优点、功能等，并给出了与LM5101C相关的TI元器件型号供参考。

LM5101C - 1A 高电压高侧和低侧闸极驱动器 - 半桥驱动器 - MOSFET和IGBT栅极驱动器 - 德州仪器

产品特性
  • Drives Both a High-Side and Low-Side N-Channel MOSFETs
  • Independent High- and Low-Driver Logic Inputs
  • Bootstrap Supply Voltage up to 118 V DC
  • Fast Propagation Times (25-ns Typical)
  • Drives 1000-pF Load With 8-ns Rise and Fall Times
  • Excellent Propagation Delay Matching (3-ns Typical)
  • Supply Rail Undervoltage Lockout
  • Low Power Consumption
  • Pin Compatible With HIP2100/HIP2101
产品应用
  • Current-Fed Push-Pull Converters
  • Half and Full Bridge Power Converters
  • Synchronous Buck Converters
  • Two Switch Forward Power Converters
  • Forward with Active Clamp Converters
产品说明

The LM5100A/B/C and LM5101A/B/C high-voltage gate drivers are designed to drive both the high-side and the low-side N-Channel MOSFETs in a synchronous buck or a half-bridge configuration. The floating high-side driver is capable of operating with supply voltages up to 100 V. The A versions provide a full 3-A of gate drive, while the B and C versions provide 2 A and 1 A, respectively. The outputs are independently controlled with CMOS input thresholds (LM5100A/B/C) or TTL input thresholds (LM5101A/B/C).

An integrated high-voltage diode is provided to charge the high-side gate drive bootstrap capacitor. A robust level shifter operates at high speed while consuming low power and providing clean level transitions from the control logic to the high-side gate driver. Undervoltage lockout is provided on both the low-side and the high-side power rails. These devices are available in the standard SOIC-8 pin, SO PowerPAD-8 pin, and the WSON-10 pin packages. The LM5100C and LM5101C are also available in MSOP-PowerPAD-8 package. The LM5101A is also available in WSON-8 pin package.

产品器件信息
PART NUMBERINPUT THRESHOLDPEAK OUTPUT CURRENT
LM5100ACMOS3 A
LM5101ATTL3 A
LM5100BCMOS2 A
LM5101BTTL2 A
LM5100CCMOS1 A
LM5101CTTL1 A
