• Compensated End-of-Discharge Voltage (CEDV) Gauging Algorithm
• Supports SMBus Host Communication
• Flexible Configuration for 3- to 5-Series (bq76920), 6- to 10-Series (bq76930), and 9- to 15-Series (bq76940) Li-Ion and LiFePO4 Batteries
• Supports Battery Configurations up to 320 Ahr
• Supports Charge and Discharge Current Reporting up to 320 A
• On-Chip Temperature Sensor Option
• External NTC Thermistor Support from Companion AFE
• Full Array of Programmable Protection Features
  • Voltage
  • Current
  • Temperature
  • System Components
• Lifetime Data Logging
• Supports CC-CV Charging, Including Precharge, Charge Inhibit, and Charge Suspend
• Offers an Optional Resistor Programmable SMBus Slave Address for up to Eight Different Bus Addresses
• Drives up to a 5-Segment LED or LCD Display for State-Of-Charge Indication
• Provides SHA-1 Authentication

• Light Electric Vehicles (LEVs): eBikes, eScooters, Pedelec, and Pedal-Assist Bicycles
• Power and Gardening Tools
• Battery Backup and Uninterruptible Power Supply (UPS) Systems
• Wireless Base Station Backup Systems
• Telecom Power Systems

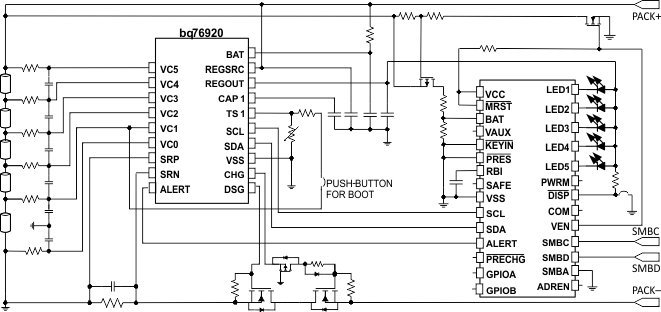

The Texas Instruments bq78350-R1 Li-Ion and LiFePO4 Battery Management Controller and companion to the bq769x0 family of Analog Front End (AFE) protection devices provides a comprehensive set of Battery Management System (BMS) subsystems, helping to accelerate product development for faster time-to-market.
