LMC555是TI公司的一款无产品，LMC555是用于生成准确延时和振荡的低功耗 555 定时器，本页介绍了LMC555的产品说明、应用、特性等，并给出了与LMC555相关的TI元器件型号供参考。
LMC555 - 用于生成准确延时和振荡的低功耗 555 定时器 - 无 - 定时器 - TI公司（Texas Instruments，德州仪器）
- Less Than 1-mW Typical Power Dissipation at 5-V Supply
- 3-MHz Astable Frequency Capability
- 1.5-V Supply Operating Voltage Ensured
- Output Fully Compatible With TTL and CMOS Logic at 5-V Supply
- Tested to −10-mA, 50-mA Output Current Levels
- Reduced Supply Current Spikes During Output Transitions
- Extremely Low Reset, Trigger, and Threshold Currents
- Excellent Temperature Stability
- Pin-for-Pin Compatible With 555 Series of Timers
- Available in 8-Pin VSSOP Package and 8-Bump DSBGA Package
- Precision Timing
- Pulse Generation
- Sequential Timing
- Time Delay Generation

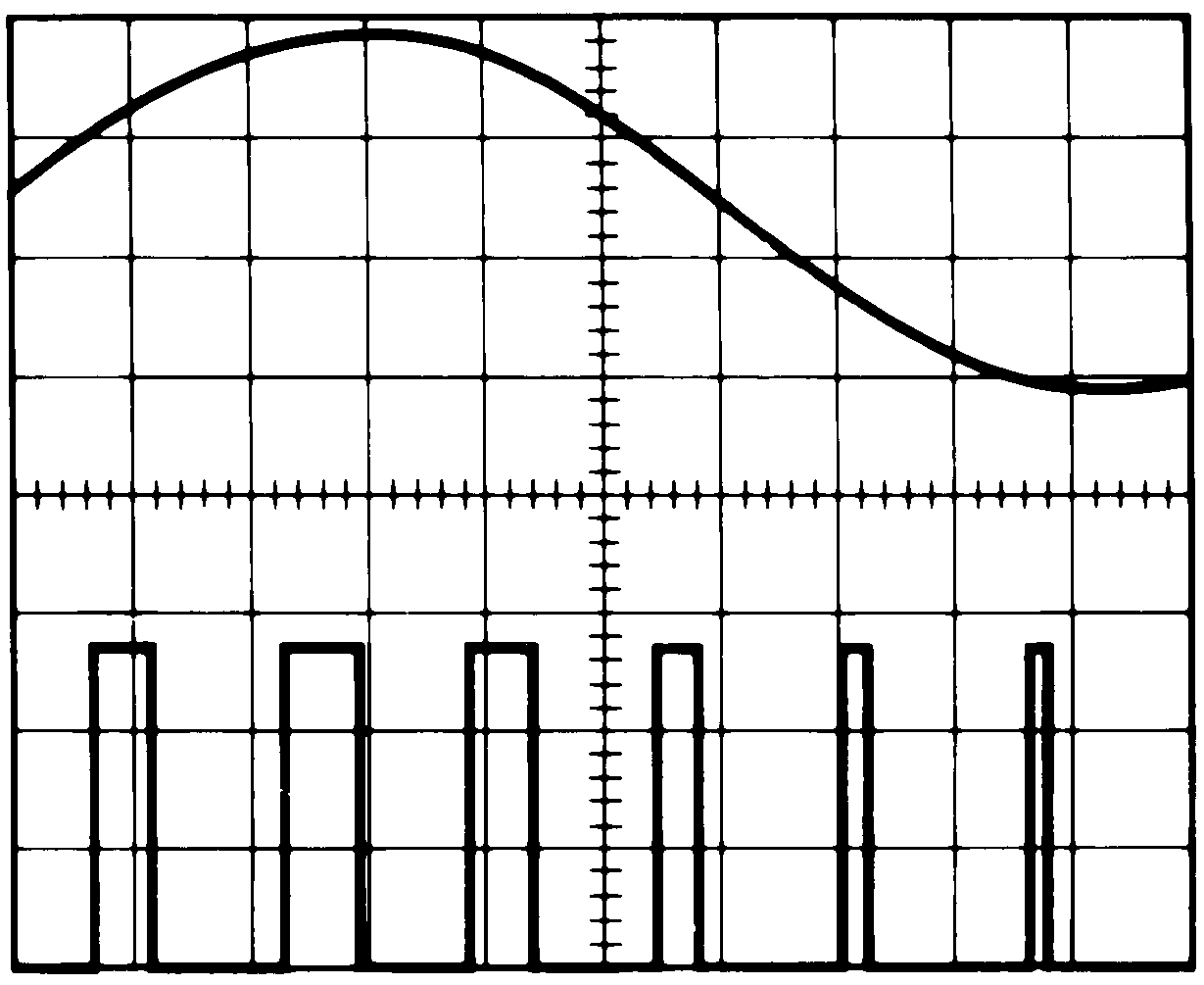

- Pulse Width Modulation
- Pulse Position Modulation
- Linear Ramp Generators
The LMC555 device is a CMOS version of the industry standard 555 series general-purpose timers. In addition to the standard package (SOIC, VSSSOP, and PDIP) the LMC555 is also available in a chip-sized package (8-bump DSBGA) using TI's DSBGA package technology. The LMC555 offers the same capability of generating accurate time delays and frequencies as the LM555 but with much lower power dissipation and supply current spikes. When operated as a one-shot, the time delay is precisely controlled by a single external resistor and capacitor. In the stable mode the oscillation frequency and duty cycle are accurately set by two external resistors and one capacitor. The use of TI's LMCMOS process extends both the frequency range and the low supply capability.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| LMC555 | SOIC (8) | 4.90 mm × 3.91 mm |
| VSSOP (8) | 3.00 mm × 3.00 mm | |
| PDIP (8) | 9.81 × 6.35 | |
| DSBGA (8) | — |
