LMK03328 - 具有两个独立 PLL 的超低抖动时钟发生器系列
LMK03328是TI公司的一款超低抖动(300fsec-RMS)产品,LMK03328是具有两个独立 PLL 的超低抖动时钟发生器系列,本页介绍了LMK03328的产品说明、应用、特性等,并给出了与LMK03328相关的TI元器件型号供参考。
LMK03328 - 具有两个独立 PLL 的超低抖动时钟发生器系列 - 超低抖动(300fsec-RMS) - 时钟发生器 - TI公司(Texas Instruments,德州仪器)
产品特性
- Ultra Low Noise, High Performance
- Jitter: 100 fs RMS typical, Fout > 100 MHz
- PSRR: -70 dBc, robust supply noise immunity
- Flexible Device Options
- Up to 8 AC-LVPECL, AC-LVDS, AC-CML, HCSL or LVCMOS outputs or any combination
- Pin mode, I2C mode, EEPROM mode
- 71 pin selectable pre-programmed default startup options
- Dual Inputs with automatic or manual selection
- Crystal input: 10 to 52 MHz
- External input: 1 to 300 MHz
- Frequency Margining Options
- Fine frequency margining (±50 ppm typ) using low-cost pullable crystal reference
- Glitchless coarse frequency margining (%) using output dividers
- Other Features
- Supply: 3.3-V core, 1.8/2.5/3.3-V output supply
- Industrial temperature range (-40ºC to +85ºC)
- Package: 7 mm x 7 mm 48-QFN
产品应用
- Switches & Routers
- Network & Telecom Line Cards
- Servers & Storage Systems
- Wireless Base Station
产品说明

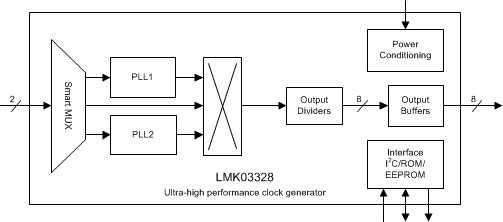

The LMK03328 is an ultra-low-noise clock generator with two fractional-N frequency synthesizers with integrated VCOs, flexible clock distribution/fanout, and pin-selectable configuration states stored in on-chip EEPROM. The device can generate multiple clocks for various multi-gigabit serial interfaces and digital devices, reduces BOM cost and board area, and improves reliability by replacing multiple oscillators and clock distribution devices. The ultra-low-jitter reduces bit error rate (BER) in high-speed serial links.
产品器件信息
PART NUMBER | PACKAGE | BODY SIZE (NOM) |
---|---|---|
LMK03328 | 48-QFN | 7.00 mm x 7.00 mm |
