LMR23610 - LMR23610 SIMPLE SWITCHER? 36V 1A 同步降压转换器

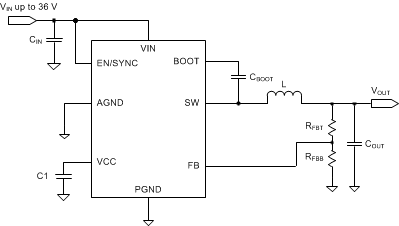

LMR23610是TI德州仪器公司的一款转换器（集成开关）产品，LMR23610是LMR23610 SIMPLE SWITCHER? 36V 1A 同步降压转换器，本站介绍了LMR23610的封装应用图解、特点和优点、功能等，并给出了与LMR23610相关的TI元器件型号供参考。

LMR23610 - LMR23610 SIMPLE SWITCHER? 36V 1A 同步降压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

4 V to 36 V Input Range
1 A Continuous Output Current
Integrated Synchronous Rectification
Current Mode Control
Minimum Switch-On Time: 60 ns
400 kHz Switching Frequency With PFM Mode
Frequency Synchronization to External Clock
Internal Compensation for Ease of Use
75 µA Quiescent Current at No Load
Soft-Start into a Pre-Biased Load
High Duty Cycle Operation Supported
Precision Enable Input
Output Short-Circuit Protection with Hiccup Mode
Thermal and Overvoltage Protection
8-Pin HSOIC with PowerPAD™ Package

产品应用

Automotive Battery Regulation
Industrial Power Supplies
Telecom and Datacom Systems
General Purpose Wide Vin Regulation

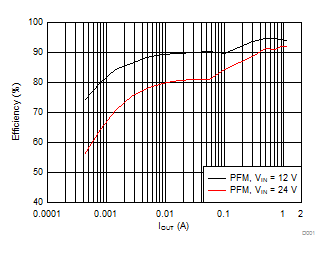

产品说明

The LMR23610 SIMPLE SWITCHER® is an easy to use 36 V, 1 A synchronous step down regulator. With a wide input range from 4 V to 36 V, it’s suitable for various applications from industrial to automotive for power conditioning from unregulated sources. Peak current mode control is employed to achieve simple control loop compensation and cycle-by-cycle current limiting. The regulator’s quiescent current is 75 µA makes it suitable for battery powered systems. An ultra-low 2 µA current in shutdown mode can further prolong battery life. Internal loop compensation means that the user is free from the tedious task of loop compensation design. This also minimizes the external components of the device. An extended family is available in 2.5 A and 3 A load current options in pin to pin compatible package which allows simple, optimum PCB layout. A precision enable input allows simplification of regulator control and system power sequencing. Protection features include cycle-by-cycle current limit, hiccup mode short circuit protection and thermal shutdown due to excessive power dissipation.

The LMR23610 is available in an 8-pin HSOIC package with exposed pad for low thermal resistance.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
LMR23610A	HSOIC (8)	4.89 mm x 3.90 mm
