LMT01 - 具有脉冲电流接口的 LMT01 高准确度 2 引脚温度传感器

LMT01是TI德州仪器公司的一款本地温度传感器产品，LMT01是具有脉冲电流接口的 LMT01 高准确度 2 引脚温度传感器，本站介绍了LMT01的封装应用图解、特点和优点、功能等，并给出了与LMT01相关的TI元器件型号供参考。

LMT01 - 具有脉冲电流接口的 LMT01 高准确度 2 引脚温度传感器 - 本地温度传感器 - 温度传感器和控制IC - 德州仪器

产品特性

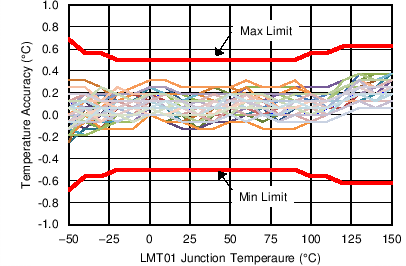

High Accuracy Over –50°C to 150°C Wide Temperature Range
- –20°C to 90°C:±0.5°C (max)
- 90°C to 150°C: ±0.62°C (max)
- –50°C to –20°C:±0.7°C (max)
Precision Digital Temperature Measurement Simplified in a 2-Pin Package
Single-wire Pulse Count Digital Output Easily Read with Processor Timer Input
Number of Output Pulses is Proportional to Temperature with 0.0625°C Resolution
Communication Frequency:88 kHz
Continuous Conversion Plus Data-Transmission Period:100 ms
Conversion Current:34 µA
Floating 2 V to 5.5 V (VP–VN) Supply Operation with Integrated EMI Immunity
2-Pin Package Offering TO-92/LPG (3.1 mm × 4 mm × 1.5 mm) – ½ the Size of Traditional TO-92

产品应用

Digital Output Wired Probes
White Goods
HVAC
Power Supplies
Industrial Internet of Things (IoT)
Automotive
Battery Management

产品说明

The LMT01 is a high-accuracy, 2-pin temperature sensor with an easy-to-use pulse count interface which makes it an ideal digital replacement for PTC or NTC thermistors both on and off board in automotive, industrial, and consumer markets. The LMT01 digital pulse count output and high accuracy over a wide temperature range allow pairing with any MCU without concern for integrated ADC quality or availability, while minimizing software overhead. TI’s LMT01 achieves flat ±0.5°C accuracy with very fine resolution (0.0625°C) over a wide temperature range of -20°C to 90°C without system calibration or hardware/software compensation.

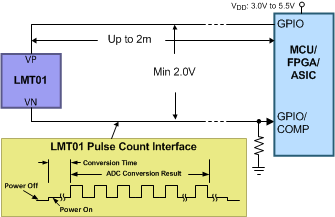

Unlike other digital IC temperature sensors, LMT01’s single wire interface is designed to directly interface with a GPIO or comparator input, thereby simplifying hardware implementation. Similarly, the LMT01's integrated EMI suppression and simple 2-pin architecture makes it ideal for on-board and off-board temperature sensing. The LMT01 offers all the simplicity of analog NTC or PTC thermistors with the added benefits of a digital interface, wide specified performance, EMI immunity, and minimum processor resources.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
LMT01	TO-92 / LPG (2)	4.00 mm × 3.15 mm
