LMT90 - LMT90 - SOT-23 单电源摄氏温度传感器

LMT90是TI德州仪器公司的一款本地温度传感器产品，LMT90是LMT90 - SOT-23 单电源摄氏温度传感器，本站介绍了LMT90的封装应用图解、特点和优点、功能等，并给出了与LMT90相关的TI元器件型号供参考。

LMT90 - LMT90 - SOT-23 单电源摄氏温度传感器 - 本地温度传感器 - 温度传感器和控制IC - 德州仪器

产品特性

Cost-Effective Alternative to Thermistors
Calibrated Directly in Degree Celsius (Centigrade)
Linear + 10.0 mV/°C Scale Factor
±3°C Accuracy Guaranteed at 25°C
Specified for Full −40° to 125°C range
Suitable for Remote Applications
Operates from 4.5 V to 10 V
Less than 130-μA Current Drain
Low Self-heating, Less Than 0.2°C in Still Air
Non-linearity Less Than 0.8°C Over Temp

产品应用

Industrial
HVAC
Disk Drives
Automotive
Portable Medical Instruments
Computers
Battery Management
Printers
Power Supply Modules
FAX Machines

产品说明

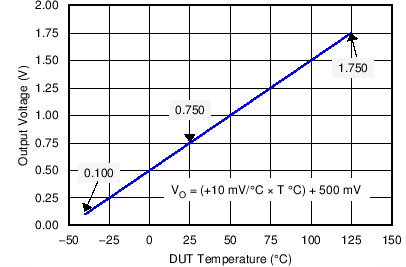

The LMT90 device is a precision integrated-circuit temperature sensor that can sense a −40°C to +125°C temperature range using a single positive supply. The output voltage of LMT90 is linearly proportional to Celsius (Centigrade) temperature (10 mV/°C) and has a DC offset of 500 mV. The offset allows reading negative temperatures without the need for a negative supply. The ideal output voltage of the LMT90 ranges from 100 mV to 1.75 V for a −40°C to 125°C temperature range. The LMT90 does not require any external calibration or trimming to provide accuracies of ±3°C at room temperature and ±4°C over the full −40°C to +125°C temperature range. Trimming and calibration of the LMT90 at the wafer level assure low cost and high accuracy. The linear output, 500-mV offset, and factory calibration of LMT90 simplify circuitry required in a single-supply environment where reading negative temperatures is required. The LMT90's quiescent current is less than 130 μA, thus self-heating is limited to a very low 0.2°C in still air.

The LMT90 is a cost-competitive alternative to thermistors.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
LMT90	SOT-23 (3)	2.92 mm × 1.30 mm
