LMX2492-Q1 - 具有斜坡生成功能的高性能 PLL

LMX2492-Q1是TI德州仪器公司的一款无产品，LMX2492-Q1是具有斜坡生成功能的高性能 PLL，本站介绍了LMX2492-Q1的封装应用图解、特点和优点、功能等，并给出了与LMX2492-Q1相关的TI元器件型号供参考。

LMX2492-Q1 - 具有斜坡生成功能的高性能 PLL - 无 - RFPPL与合成器 - 德州仪器

产品特性

-227 dBc/Hz Normalized PLL Noise
500 MHz - 14 GHz Wideband PLL
3.15 - 5.25 V Charge Pump PLL Supply
Versatile Ramp / Chirp Generation
200 MHz Max Phase Detector Frequency
FSK / PSK Modulation Pin
Digital Lock Detect
Single 3.3 V Supply Capability
Automotive 125°C Q100 Grade 1 Qualification
Non-Automotive (LMX2492) Option

2 Applications

Automotive FMCW Radar
Military Radar
Microwave Backhaul
Test and Measurement
Satellite Communications
Wireless Infrastructure
Sampling Clock for High Speed ADC/DAC

产品说明

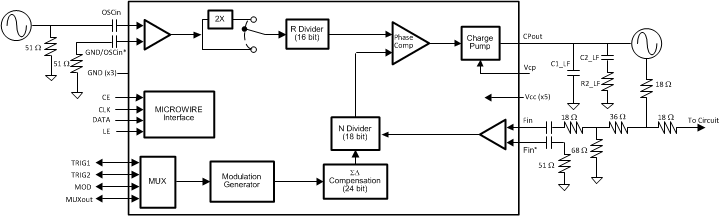

The LMX2492/92-Q1 is a low noise 14 GHz wideband delta-sigma fractional N PLL with ramp and chirp generation. It consists of a phase frequency detector, programmable charge pump, and high frequency input for the external VCO. The LMX2492/92-Q1 supports a broad and flexible class of ramping capabilities, including FSK, PSK, and configurable piecewise linear FM modulation profiles of up to 8 segments. It supports fine PLL resolution and fast ramp with up to a 200 MHz phase detector rate. The LMX2492/92-Q1 allows any of its registers to be read back. The LMX2492/92-Q1 can operate with a single 3.3 V supply. Moreover, supporting up to 5.25 V charge pump can eliminate the need of external amplifier, leading to a simpler solution with improved phase noise performance.

Device Information

PART NUMBER	PACKAGE	BODY SIZE (NOM)
LMX2492-Q1RTW	WQFN (24)	4.00 mm x 4.00 mm
LMX2492RTW	WQFN (24)	4.00 mm x 4.00 mm
