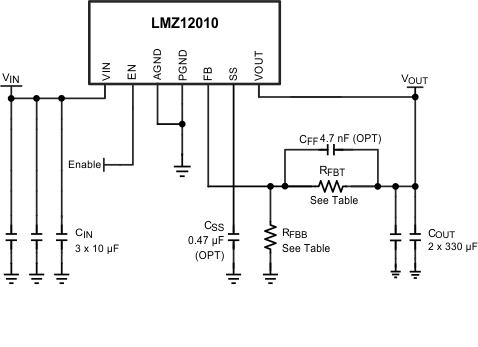

LMZ12010 - 产品图解：
LMZ12010-具有 20V 最大输入电压的 10A SIMPLE SWITCHER? 电源模块
LMZ12010-非隔离式模块-电源模块-电源管理
LMZ12010-LMZ12010 具备 20V 最高输入电压的 10A SIMPLE SWITCHER? 易电源电源模块 (Rev. C)
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - LMZ12010介绍

LMZ12010 - 具有 20V 最大输入电压的 10A SIMPLE SWITCHER? 电源模块

LMZ12010是TI德州仪器公司的一款非隔离式模块产品，LMZ12010是具有 20V 最大输入电压的 10A SIMPLE SWITCHER? 电源模块，本站介绍了LMZ12010的封装应用图解、特点和优点、功能等，并给出了与LMZ12010相关的TI元器件型号供参考。

LMZ12010 - 具有 20V 最大输入电压的 10A SIMPLE SWITCHER? 电源模块 - 非隔离式模块 - 电源模块 - 德州仪器

产品特性
  • Integrated Shielded Inductor
  • Simple PCB Layout
  • Fixed Switching Frequency (350 kHz)
  • Flexible Start-Up Sequencing Using External Soft-Start, Tracking and Precision Enable
  • Protection Against Inrush Currents and Faults such as Input UVLO and Output Short Circuit
  • Junction Temperature Range –40°C to 125°C
  • Single Exposed Pad and Standard Pinout for Easy Mounting and Manufacturing
  • Fully Enabled for WEBENCH® Power Designer
  • Pin Compatible With LMZ22010/08/06, LMZ12008/06, LMZ23610/08/06, and LMZ13610/08/06
  • Electrical Specifications
    • 50-W Maximum Total Output Power
    • Up to 10-A Output Current
    • Input Voltage Range 6 V to 20 V
    • Output Voltage Range 0.8 V to 6 V

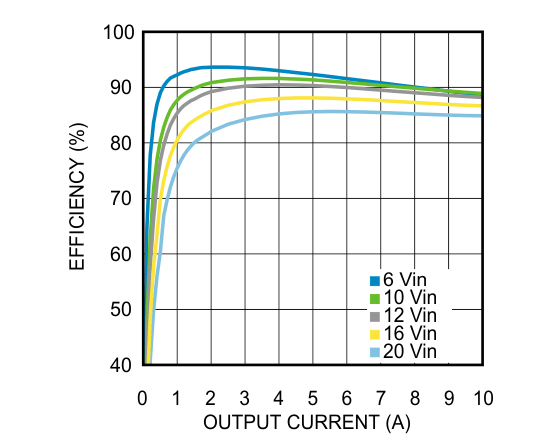

    • Efficiency up to 92%
  • Performance Benefits
    • High Efficiency Reduces System Heat Generation
    • Low Radiated Emissions (EMI) Tested to EN55022 (1)
    • Only 7 External Components
    • Low Output Voltage Ripple
    • No External Heat Sink Required
(1) EN 55022:2006, +A1:2007, FCC Part 15 Subpart B, tested on Evaluation Board with EMI configuration.
产品应用
  • Point-of-load Conversions from 12-V Input Rail
  • Time-Critical Projects
  • Space Constrained and High Thermal Requirement Applications
  • Negative Output Voltage Application (See AN-2027 SNVA425)
产品说明

The LMZ12010 SIMPLESWITCHER® power module is an easy-to-use step-down DC-DC solution capable of driving up to 10-A load. The LMZ12010 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering.

The LMZ12010 device can accept an input voltage rail between 6 V and 20 V and deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ12010 only requires two external resistors and external capacitors to complete the power solution. The LMZ12010 is a reliable and robust design with the following protection features: thermal shutdown, programmable input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and the device allows start-up into a prebiased output.

Device Information(1)(2)
PART NUMBERPACKAGEBODY SIZE (NOM)
LMZ12010NDY (11)15.00 mm × 15.00 mm
