LP38503-ADJ是TI公司的一款单通道LDO产品，LP38503-ADJ是用于 2.7V 至 5.5V 输入的 3A FlexCap 低压降线性稳压器，本页介绍了LP38503-ADJ的产品说明、应用、特性等，并给出了与LP38503-ADJ相关的TI元器件型号供参考。
LP38503-ADJ - 用于 2.7V 至 5.5V 输入的 3A FlexCap 低压降线性稳压器 - 单通道LDO - 线性稳压器(LDO) - TI公司（Texas Instruments，德州仪器）
- Input Voltage: 2.7 V to 5.5 V
- Adjustable Output Voltage: 0.6 V to 5 V
- FlexCap: Stable with Ceramic, Tantalum, or Aluminum Capacitors
- Stable With 10-µF Input and Output Capacitors
- Low Ground-Pin Current
- 25-nA Quiescent Current in Shutdown Mode
- Ensured Output Current of 3 A
- Ensured VADJ Accuracy of ±1.5% at 25°C (A Grade)
- Ensured Accuracy of ±3.5% at 25°C (STD)
- Overtemperature and Overcurrent Protection
- ENABLE (EN) Pin (LP38501 only)
- –40°C to +125°C Operating Temperature Range
- ASIC Power Supplies In:
- Printers, Graphics Cards, DVD Players
- Set Top Boxes, Copiers, Routers
- DSP and FPGA Power Supplies
- SMPS Regulator
- Conversion from 3.3-V or 5-V Rail

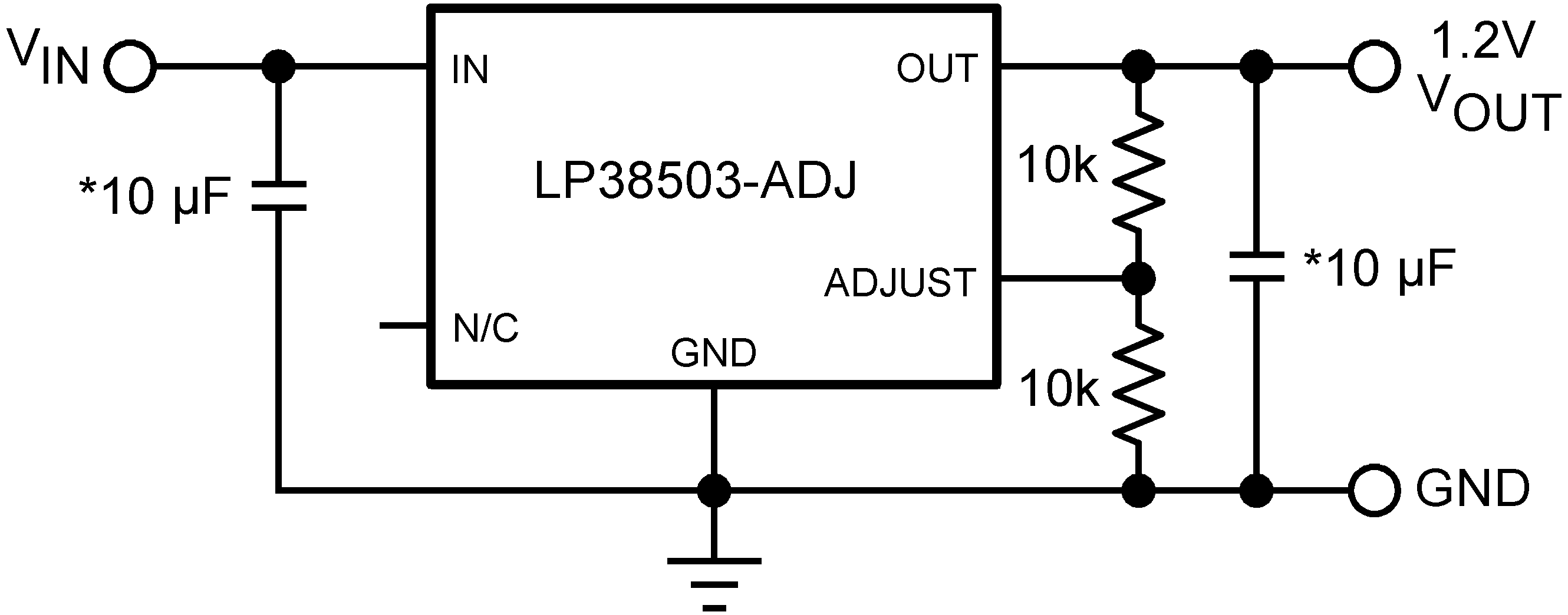

TI's FlexCap low-dropout (LDO) linear regulators feature unique compensation that allow use of any type of output capacitor with no limits on minimum or maximum equivalent series resistance (ESR). The LP38501 and LP38503 series of LDOs operate from a 2.7-V to 5.5-V input supply. These ultra-low-dropout linear regulators respond very quickly to step changes in load, making them suitable for low-voltage microprocessor applications. Developed on a CMOS process (utilizing a PMOS pass transistor) the LP38501-ADJ and LP38503-ADJ have low quiescent currents that change little with load current.
- GND Pin Current: Typically 2 mA at 3-A load current.
- Disable Mode: Typically 25-nA quiescent current when the EN pin is pulled low.
- Simplified Compensation: Stable with any type of output capacitor, regardless of ESR.
- Precision Output: A grade versions available with 1.5% VADJ tolerance (25°C) and 3% over line, load, and temperature.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| LP38501 LP38503 | DDPAK/TO-263 (5) | 10.16 mm x 8.42 mm |
| TO-263 (5) | 10.16 mm x 9.85 mm |
