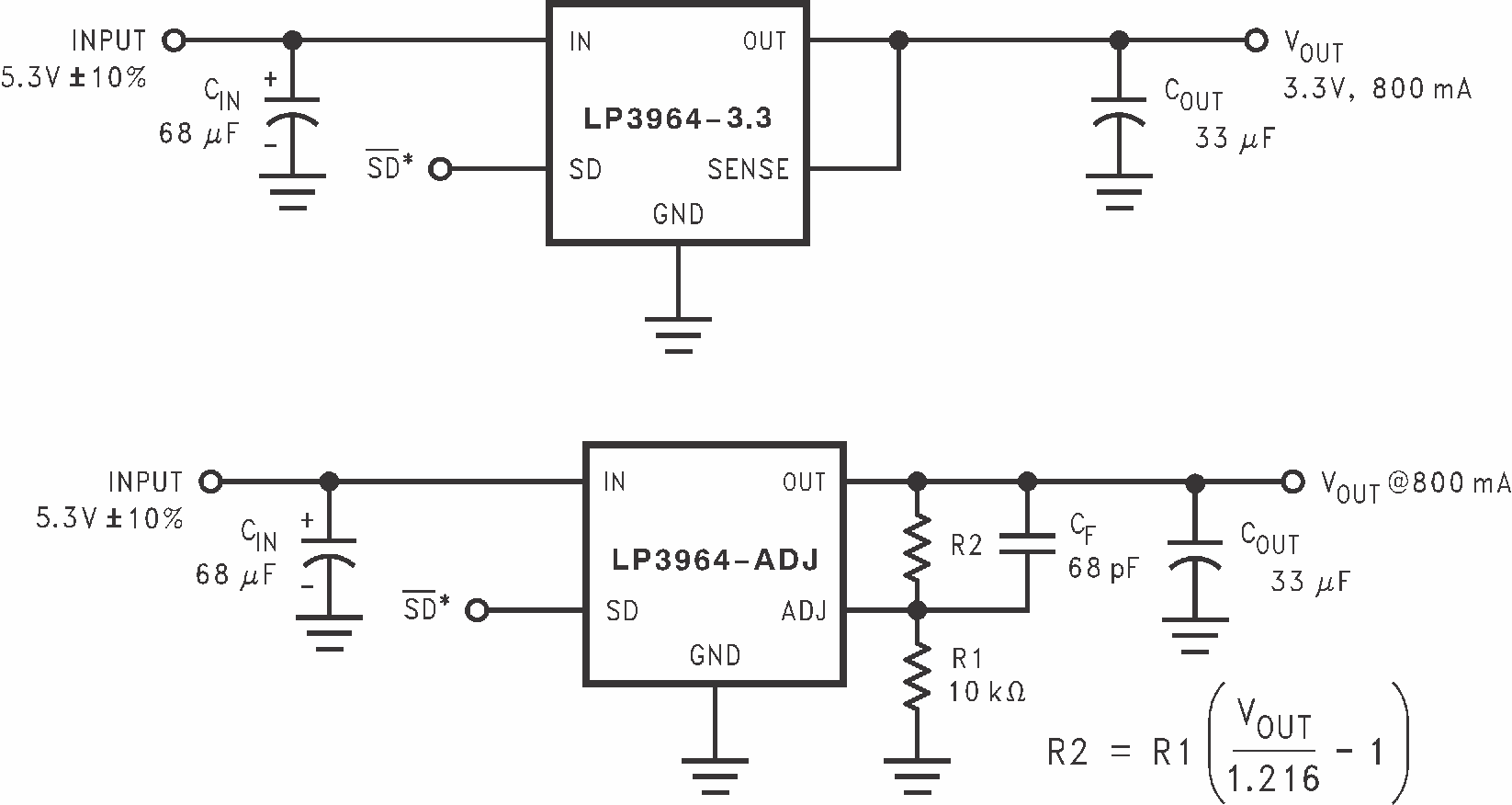

LP3964 - 产品图解：
LP3964-800mA 快速超低压降线性稳压器
LP3964-单通道LDO-线性稳压器(LDO)-电源管理
LP3964-LP396x 800-mA Fast Ultra-Low-Dropout Linear Regulators
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - LP3964介绍

LP3964 - 800mA 快速超低压降线性稳压器

LP3964是TI德州仪器公司的一款单通道LDO产品，LP3964是800mA 快速超低压降线性稳压器，本站介绍了LP3964的封装应用图解、特点和优点、功能等，并给出了与LP3964相关的TI元器件型号供参考。

LP3964 - 800mA 快速超低压降线性稳压器 - 单通道LDO - 线性稳压器(LDO) - 德州仪器

产品特性
  • Input Supply Voltage: 2.5 V to 7 V
  • Ultra-Low Dropout Voltage
  • Low Ground Pin Current
  • Load Regulation of 0.02%
  • 15-µA Quiescent Current in Shutdown Mode
  • Specified Output Current of 0.8-A DC
  • Output Voltage Accuracy ±1.5%
  • ERROR Flag Indicates Output Status (LP3961)
  • Sense Option Improves Better Load Regulation (LP3964)
  • Extremely Low Output Capacitor Requirements
  • Overtemperature and Overcurrent Protection
  • −40°C to 125°C Junction Temperature Range
产品应用
  • Microprocessor Power Supplies
  • GTL, GTL+, BTL, and SSTL Bus Terminators
  • Power Supplies for DSPs
  • SCSI Terminator
  • Post Regulators
  • High-Efficiency Linear Regulators
  • Battery Chargers
  • Other Battery-Powered Applications
产品说明

The LP396x series of fast ultra-low-dropout linear regulators operate from a 2.5-V to 7-V input supply. A wide range of preset output voltage options are available. These ultra-low dropout linear regulators respond very fast to step changes in load which makes them suitable for low-voltage microprocessor applications. The LP3961 and LP3964 are developed on a CMOS process which allows low quiescent current operation independent of output load current, as well as operation under extremely low dropout conditions.

Dropout Voltage: Ultra-low dropout voltage; typically 24 mV at 80-mA load current and 240 mV at 800-mA load current.

Ground Pin Current: Typically 4 mA at 800-mA load current.

ERROR Flag:ERROR flag goes low when the output voltage drops 10% below nominal value (for LP3961).

SENSE: SENSE pin improves regulation at remote loads (for LP3964).

Precision Output Voltage: Multiple output voltage options are available ranging from 1.2 V to 5 V and adjustable (LP3964), with a specified accuracy of ±1.5% at room temperature, and ±3% over all conditions (varying line, load, and temperature).

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
LP3961 LP3964SOT-223 (5)6.50 mm × 3.56 mm
TO-263 (5)10.16 mm × 8.42 mm
LP3964TO-220 (5)14.986 mm × 10.16 mm
