MSP430FR59221 - MSP430FR597x(1)、MSP430FR5 87x(1) 混合信号微控制器

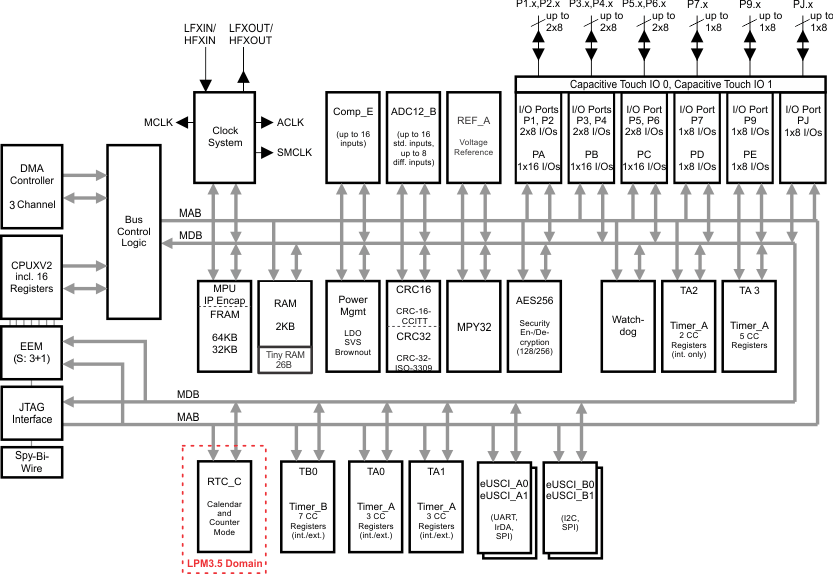

MSP430FR59221是TI德州仪器公司的一款超低功耗产品，MSP430FR59221是MSP430FR597x(1)、MSP430FR5 87x(1) 混合信号微控制器，本站介绍了MSP430FR59221的封装应用图解、特点和优点、功能等，并给出了与MSP430FR59221相关的TI元器件型号供参考。

MSP430FR59221 - MSP430FR597x(1)、MSP430FR5 87x(1) 混合信号微控制器 - 超低功耗 - 低功耗MCU - 德州仪器

1 Device Overview

1.1 Features

Embedded Microcontroller
- 16-Bit RISC Architecture up to 16-MHz Clock
- Wide Supply Voltage Range (1.8V to 3.6V) (1)
Optimized Ultra-Low-Power Modes
- Active Mode: Approximately 100 µA/MHz
- Standby (LPM3 With VLO): 0.4 µA (Typical)
- Real-Time Clock (RTC) (LPM3.5): 0.35µA(Typical) (2)
- Shutdown (LPM4.5): 0.04 µA (Typical)
Ultra-Low-Power Ferroelectric RAM (FRAM)
- Up to 64KB of Nonvolatile Memory
- Ultra-Low-Power Writes
- Fast Write at 125ns per Word (64KB in 4ms)
- Unified Memory = Program + Data + Storage in One Single Space
- 1015 Write Cycle Endurance
- Radiation Resistant and Nonmagnetic
Intelligent Digital Peripherals
- 32-Bit Hardware Multiplier (MPY)
- Three-Channel Internal Direct Memory Access (DMA)
- RTC With Calendar and Alarm Functions
- Five 16-Bit Timers With up to Seven Capture/Compare Registers
- 16-Bit and 32-Bit Cyclic Redundancy Checker (CRC16, CRC32)
High-Performance Analog
- Up to 8-Channel Analog Comparator
- 12-Bit Analog-to-Digital Converter (ADC) With Internal Reference and Sample-and-Hold and up to 8 External Input Channels
Code Security and Encryption
- 128-Bit or 256-Bit AES Security Encryption and Decryption Coprocessor (MSP430FR59xx(1) Only)
- True Random Number Seed for Random Number Generation Algorithm
- Lockable Memory Segments for IP Encapsulation and Secure Storage
Multifunction Input/Output Ports
- All I/O Pins Support Capacitive Touch Capability Without Need for External Components
- Accessible Bit-, Byte- and Word-Wise (in Pairs)
- Edge-Selectable Wakeup From LPM on Ports P1, P2, P3, and P4
- Programmable Pullup and Pulldown on All Ports
Enhanced Serial Communication
- eUSCI_A0 and eUSCI_A1 Support:
  - UART With Automatic Baud-Rate Detection
  - IrDA Encode and Decode
  - SPI at Rates up to 10 Mbps
- eUSCI_B0 and eUSCI_B1 Support:
  - I2C With Multiple-Slave Addressing
  - SPI at Rates up to 10Mbps
Flexible Clock System
- Fixed-Frequency DCO With 10 Selectable Factory-Trimmed Frequencies
- Low-Power Low-Frequency Internal Clock Source (VLO)
- 32-kHz Crystals (LFXT)
- High-Frequency Crystals (HFXT)
Development Tools and Software
- Free Professional Development Environments With EnergyTrace++™ Technology for Power Profiling and Debugging
- Microcontroller Development Boards Available
Family Members
- Section 3 Summarizes the Available Variants and Packages
For Complete Module Descriptions, See the MSP430FR58xx, MSP430FR59xx, MSP430FR68xx, and MSP430FR69xx Family User's Guide (SLAU367)

(1) Minimum supply voltage is restricted by SVS levels.(2) The RTC is clocked by a 3.7-pF crystal.

1.2 Applications

Metering
Energy Harvested Sensor Nodes
Wearable Electronics
Sensor Management
Data Logging

1.3 Description

This ultra-low-power MSP430FRxx FRAM microcontroller family consists of several devices featuring embedded nonvolatile FRAM, a 16-bit CPU, and different sets of peripherals targeted for various applications. The architecture, FRAM, and peripherals, combined with seven low-power modes, are optimized to achieve extended battery life in portable and wireless sensing applications. FRAM is a new nonvolatile memory that combines the speed, flexibility, and endurance of SRAM with the stability and reliability of flash, all at lower total power consumption.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE(2)
MSP430FR5972IPMR	LQFP (64)	10 mm × 10 mm
MSP430FR5972IRGC	VQFN (64)	9 mm × 9 mm
MSP430FR5922IG56	TSSOP (56)	6.1 mm × 14 mm
