LMK61E2-100M - 超低抖动固定频率差分振荡器 - 100M00

LMK61E2-100M是TI德州仪器公司的一款无产品，LMK61E2-100M是超低抖动固定频率差分振荡器 - 100M00，本站介绍了LMK61E2-100M的封装应用图解、特点和优点、功能等，并给出了与LMK61E2-100M相关的TI元器件型号供参考。

LMK61E2-100M - 超低抖动固定频率差分振荡器 - 100M00 - 无 - 振荡器 - 德州仪器

产品特性

Ultra-low Noise, High Performance
- Jitter: 90 fs RMS typical Fout > 100 MHz
- PSRR: -70 dBc, robust supply noise immunity
Supported Output Format
- LVPECL up to 1 GHz
- LVDS up to 900 MHz
- HCSL up to 400 MHz
Total Frequency Tolerance of ± 50 ppm
3.3 V Operating Voltage
Industrial Temperature Range (-40ºC to +85ºC)

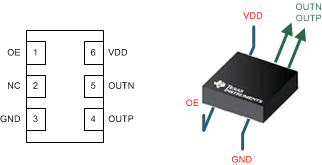

7 mm x 5 mm 6-pin Package that is Pin-compatible with Industry Standard 7050 XO Package

产品应用

High-Performance Replacement for Crystal-, SAW-, or Silicon-based Oscillators
Switches, Routers, Network Line Cards, Base Band Units (BBU), Servers, Storage/SAN
Test and Measurement
Medical Imaging
FPGA, Processor Attach

产品说明

The LMK61XX is an ultra-low jitter oscillator that generates a commonly used reference clock. The device is pre-programmed in factory to support any reference clock frequency; supported output formats are LVPECL up to 1 GHz, LVDS up to 900 MHz, and HCSL up to 400 MHz. Internal power conditioning provide excellent power supply ripple rejection (PSRR), reducing the cost and complexity of the power delivery network. The device operates from a single 3.3 V ± 5% supply.

产品器件信息

PART NUMBER	OUTPUT FREQ (MHz) AND FORMAT	PACKAGE	BODY SIZE (NOM)
LMK61A2-100M00SIA	100 LVDS	6-pin QFM	7.0 mm x 5.0 mm
LMK61A2-125M00SIA	125 LVDS
LMK61A2-156M25SIA	156.25 LVDS
LMK61A2-312M50SIA	312.5 LVDS
LMK61E2-100M00SIA	100 LVPECL
LMK61E2-125M00SIA	125 LVPECL
LMK61E2-156M25SIA	156.25 LVPECL
LMK61E2-312M50SIA	312.5 LVPECL
LMK61I2-100M00SIA	100 HCSL
