SN54AHC374 - 具有三态输出的八路边沿 D 类触发器

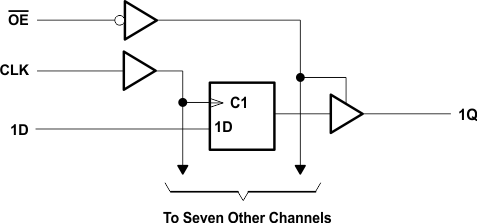

SN54AHC374是TI德州仪器公司的一款D类触发器产品，SN54AHC374是具有三态输出的八路边沿 D 类触发器，本站介绍了SN54AHC374的封装应用图解、特点和优点、功能等，并给出了与SN54AHC374相关的TI元器件型号供参考。

SN54AHC374 - 具有三态输出的八路边沿 D 类触发器 - D类触发器 - 触发器/锁存器/寄存器 - 德州仪器

产品特性

Operating Range 2-V to 5.5-V VCC
3-State Outputs Drive Bus Lines Directly
Latch-Up Performance Exceeds 250 mA Per JESD 17
On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model
- 200-V Machine Model
- 1500-V Charged-Device Model

产品应用

Printers
Network Switches
Tests and Measurements
Wireless Infratructure
Motor Controls
Server Motherboards

产品说明

The SNx4AHC374 devices are octal edge-triggered D-type flip-flops that feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. These devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
SNx4AHC374	SSOP (20)	7.50 mm × 5.30 mm
	TVSOP (20)	5.00 mm × 4.40 mm
	SOIC (20)	12.80 mm × 7.50 mm
	PDIP (20)	25.40 mm × 6.35 mm
	TSSOP (20)	6.50 mm × 4.40 mm
