SN54AHC574技术文档下载：

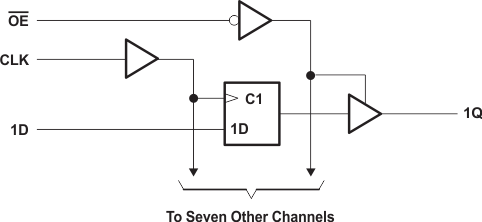

SN54AHC574 - 产品图解：
SN54AHC574 - 具有三态输出的八路边沿触发 D 类触发器
SN54AHC574是TI公司的一款D类触发器产品，SN54AHC574是具有三态输出的八路边沿触发 D 类触发器，本页介绍了SN54AHC574的产品说明、应用、特性等，并给出了与SN54AHC574相关的TI元器件型号供参考。
SN54AHC574 - 具有三态输出的八路边沿触发 D 类触发器 - D类触发器 - 触发器/锁存器/寄存器 - TI公司（Texas Instruments，德州仪器）
产品特性
- Operating Range 2-V to 5.5-V VCC
- 3-State Outputs Drive Bus Lines Directly
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model
- 200-V Machine Model
- 1000-V Charged-Device Model
产品应用
- Smart Grids
- TVs
- Set Top Boxes
- Audio
- Servers
- Surveillance Cameras
- Network Switches
- Infotainment
产品说明
The SNx4AHC574 devices are octal edge-triggered D-type flip-flops that feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. These devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
产品器件信息
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| SNx4AHC574 | SSOP (20) | 7.50 mm × 5.30 mm |
| TVSOP (20) | 5.00 mm × 4.40 mm | |
| SOIC (20) | 12.80 mm × 7.50 mm | |
| PDIP (20) | 25.40 mm × 6.35 mm | |
| TSSOP (20) | 6.50 mm × 4.40 mm |
