当前位置：TI代理 > > TI芯片 >> SN65HVD231
SN65HVD231技术文档下载：
SN65HVD231技术文档产品手册下载

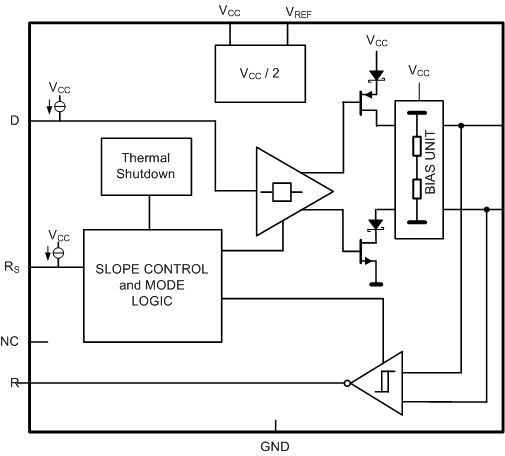

SN65HVD231 - 产品图解：
SN65HVD231-具有休眠模式的 3.3V CAN 收发器
SN65HVD231--CAN收发器-接口
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - SN65HVD231介绍

SN65HVD231 - 具有休眠模式的 3.3V CAN 收发器

SN65HVD231是TI德州仪器公司的一款无产品，SN65HVD231是具有休眠模式的 3.3V CAN 收发器，本站介绍了SN65HVD231的封装应用图解、特点和优点、功能等，并给出了与SN65HVD231相关的TI元器件型号供参考。

SN65HVD231 - 具有休眠模式的 3.3V CAN 收发器 - 无 - CAN收发器 - 德州仪器

产品特性
  • Operates with a single 3.3 V Supply
  • Compatible With ISO 11898-2 Standard
  • Low Power Replacement for the PCA82C250 Footprint
  • Bus Pin ESD Protection Exceeds ±16 kV HBM
  • High Input Impedance Allows for Up to 120 Nodes on a Bus
  • Adjustable Driver Transition Times for Improved Emissions Performance
    • SN65HVD230 and SN65HVD231
  • SN65HVD230: Low Current Standby Mode
    • 370 μA Typical
  • SN65HVD231: Ultra Low Current Sleep Mode
    • 40 nA Typical
  • Designed for Data Rates(1) up to 1 Mbps
  • Thermal Shutdown Protection
  • Open Circuit Fail-Safe Design
  • Glitch Free Power Up and Power Down Protection for Hot Plugging Applications (1)
(1) The signaling rate of a line is the number of voltage transitions that are made per second expressed in the units bps (bits per second).
产品应用
  • Industrial Automation, Control, Sensors and Drive Systems
  • Motor and Robotic Control
  • Building and Climate Control (HVAC)
  • Telecom and Basestation Control and Status
  • CAN Bus Standards Such as CANopen,

    • DeviceNet, and CAN Kingdom

产品说明

The SN65HVD230, SN65HVD231, and SN65HVD232 controller area network (CAN) transceivers are compatible to the specifications of the ISO 11898-2 High Speed CAN Physical Layer standard (transceiver). These devices are designed for data rates up to 1 megabit per second (Mbps), and include many protection features providing device and CAN network robustness. The SN65HVD23x transceivers are designed for use with the Texas Instruments 3.3 V µPs, MCUs and DSPs with CAN controllers, or with equivalent protocol controller devices. The devices are intended for use in applications employing the CAN serial communication physical layer in accordance with the ISO 11898 standard.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
SN65HVD230SOIC (8)4.90 mm × 3.91 mm
SN65HVD231
SN65HVD232
