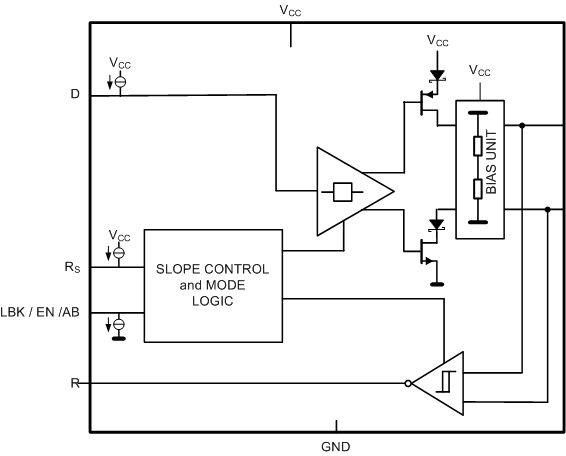

SN65HVD234 - 产品图解：
SN65HVD234-具有休眠模式的 3.3V CAN 收发器
SN65HVD234--CAN收发器-接口
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - SN65HVD234介绍

SN65HVD234 - 具有休眠模式的 3.3V CAN 收发器

SN65HVD234是TI德州仪器公司的一款无产品，SN65HVD234是具有休眠模式的 3.3V CAN 收发器，本站介绍了SN65HVD234的封装应用图解、特点和优点、功能等，并给出了与SN65HVD234相关的TI元器件型号供参考。

SN65HVD234 - 具有休眠模式的 3.3V CAN 收发器 - 无 - CAN收发器 - 德州仪器

产品特性
  • Single 3.3-V Supply Voltage
  • Bus Pins Fault Protection Exceeds ±36 V
  • Bus Pins ESD Protection Exceeds ±16 kV HBM
  • Compatible With ISO 11898-2
  • GIFT/ICT Compliant
  • Data Rates up to 1 Mbps
  • Extended –7 V to 12 V Common Mode Range
  • High-Input Impedance Allows for 120 Nodes
  • LVTTL I/Os are 5-V Tolerant
  • Adjustable Driver Transition Times for Improved Emissions Performance
  • Unpowered Node Does Not Disturb the Bus
  • Low Current Standby Mode, 200-μA (Typical)
  • SN65HVD233: Loopback Mode
  • SN65HVD234: Ultra Low Current Sleep Mode
    • 50-nA Typical Current Consumption
  • SN65HVD235: Autobaud Loopback Mode
  • Thermal Shutdown Protection
  • Power up and Down With Glitch-Free Bus Inputs and Outputs
    • High-Input Impedance With Low VCC
    • Monolithic Output During Power Cycling
产品应用
  • Industrial Automation, Control, Sensors, and Drive Systems
  • Motor and Robotic Control
  • Building and Climate Control (HVAC)
  • Backplane Communication and Control
  • CAN Bus Standards such as CANopen, DeviceNet, CAN Kingdom, ISO 11783, NMEA 2000, SAE J1939
产品说明

The SN65HVD233, SN65HVD234, and SN65HVD235 are used in applications employing the controller area network (CAN) serial communication physical layer in accordance with the ISO 11898 standard. As a CAN transceiver, each provides transmit and receive capability between the differential CAN bus and a CAN controller, with signaling rates up to 1 Mbps.

Designed for operation in especially harsh environments, the devices feature cross-wire protection, overvoltage protection up to ±36 V, loss of ground protection, overtemperature (thermal shutdown) protection, and common-mode transient protection of ±100 V. These devices operate over a wide –7 V to 12 V common-mode range. These transceivers are the interface between the host CAN controller on the microprocessor and the differential CAN bus used in industrial, building automation, transportation, and automotive applications.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
SN65HVD233SOIC (8)4.90 mm × 3.91 mm
SN65HVD234
SN65HVD235
