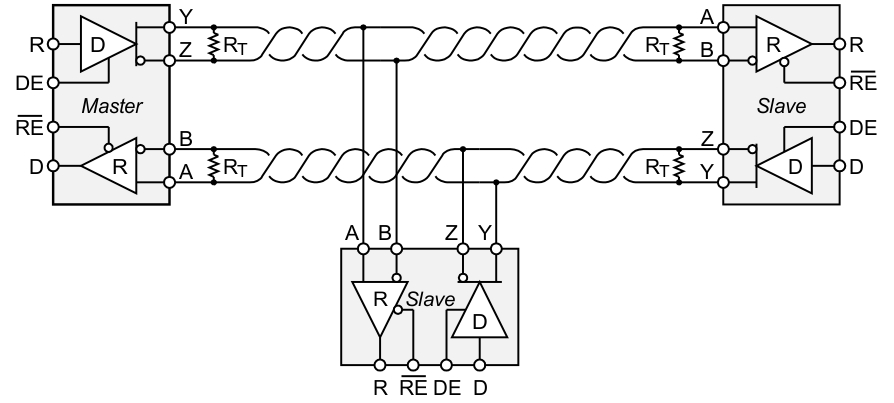

SN65HVD32 - 产品图解：
SN65HVD32-3.3V 全双工 RS 485 驱动器和接收器
SN65HVD32--RS-485收发器-接口
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - SN65HVD32介绍

SN65HVD32 - 3.3V 全双工 RS 485 驱动器和接收器

SN65HVD32是TI德州仪器公司的一款无产品，SN65HVD32是3.3V 全双工 RS 485 驱动器和接收器，本站介绍了SN65HVD32的封装应用图解、特点和优点、功能等，并给出了与SN65HVD32相关的TI元器件型号供参考。

SN65HVD32 - 3.3V 全双工 RS 485 驱动器和接收器 - 无 - RS-485收发器 - 德州仪器

产品特性
  • 1/8 Unit-Load Option Available (Up to 256Nodes on the Bus)
  • Bus-Pin ESD Protection Exceeds 15-kV HBM
  • Optional Driver Output Transition Times for Signaling Rates of 1Mbps, 5Mbps and 26Mbps
    • Line Signaling Rate is the Number of Voltage Transitions Made per Second Expressed in Units of bps (bits per second)
  • Low-Current Standby Mode: <1 μA
  • Glitch-Free Power-Up and Power-Down Protection for Hot-Plugging Applications
  • 5-V Tolerant Inputs
  • Bus Idle, Open, and Short-Circuit Failsafe
  • Driver Current Limiting and Thermal Shutdown
  • Designed for RS-422 and RS-485 Networks
  • 5-V Devices Available, SN65HVD50-55
产品应用
  • Utility Meters
  • DTE and DCE Interfaces
  • Industrial, Process, and Building Automation
  • Point-of-Sale (POS) Pins and Networks
产品说明

The SN65HVD3x devices are 3-state differential line drivers and differential-input line receivers that operate with 3.3-V power supply.

Each driver and receiver has separate input and output pins for full-duplex bus communication designs. They are designed for RS-422 and RS-485 data transmission over cable lengths of up to 1500 meters.

The SN65HVD30, SN65HVD31, and SN65HVD32 devices are fully enabled with no external enabling pins.

The SN65HVD33, SN65HVD34, and SN65HVD35 devices have active-high driver enables and active-low receiver enables. A low, less than 1 μA, standby current can be achieved by disabling both the driver and receiver.

All devices are characterized for ambient temperatures from –40°C to 85°C. Low power dissipation allows operation at temperatures up to 105°C or 125°C, depending on package option.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
SN65HVD30SOIC (8)4.90 mm × 3.91 mm
SN65HVD31
SN65HVD32
SN65HVD33SOIC (14)8.65 mm × 3.91 mm
VQFN (20)4.50 mm × 3.50 mm
SN65HVD34SOIC (14)8.65 mm × 3.91 mm
SN65HVD35
