SN65LVDS049 - 双路高速差动驱动器和接收器

SN65LVDS049是TI德州仪器公司的一款LVDSPHY(<800Mbps)产品，SN65LVDS049是双路高速差动驱动器和接收器，本站介绍了SN65LVDS049的封装应用图解、特点和优点、功能等，并给出了与SN65LVDS049相关的TI元器件型号供参考。

SN65LVDS049 - 双路高速差动驱动器和接收器 - LVDSPHY(<800Mbps) - LVDS/M-LVDS/ECL/CML - 德州仪器

产品特性

DS90LV049 Compatible
Up to 400-Mbps Signaling Rates
Flow-Through Pinout
50-ps Driver Channel-to-Channel Skew (Typical)
50-ps Receiver Channel-to-Channel Skew (Typical)
3.3-V Power Supply
High-Impedance Disable for All Outputs
Internal Fail-safe Biasing of Receiver Inputs
1.4-ns Driver Propagation Delay (Typical)
1.9-ns Receiver Propagation Delay (Typical)
High-Impedance Bus Pins on Power Down
ANSI TIA/EIA-644-A Compliant
Receiver Input and Driver Output ESD Exceeds 10 kV
16-Pin TSSOP Package

产品应用

Full-Duplex LVDS Communications of Clock and Data
Printers

产品说明

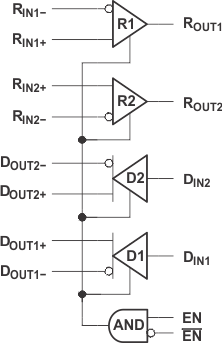

The SN65LVDS049 device is a dual flow-through differential line driver-receiver pair that uses low-voltage differential signaling (LVDS) to achieve signaling rates as high as 400 Mbps. The driver and receiver electrical interfaces are compliant to the TIA/EIA-644-A standard.

The intended application of this device and signaling technique is for point-to-point baseband data transmission over controlled impedance media of approximately 100-Ω characteristic impedance. The transmission media may be printed-circuit board traces, backplanes, or cables. The ultimate rate and distance of data transfer is dependent upon the attenuation characteristics of the media, the noise coupling to the environment, and other application specific characteristics.

The SN65LVDS049 is characterized for operation from –40°C to 85°C

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
SN65LVDS049	TSSOP (16)	5.00 mm × 4.40 mm
