• Available in the Texas Instruments NanoFree™ Package
• Fully Configurable Dual-Rail Design Allows Each Port to Operate Over the Full 1.2-V to 3.6-V Power-Supply Range
• VCC Isolation Feature - If Either VCC Input Is At GND, Both Ports Are In The High-Impedance State
• DIR Input Circuit Referenced to VCCA
• ±12-mA Output Drive at 3.3 V
• I/Os Are 4.6-V Tolerant
• Ioff Supports Partial-Power-Down Mode Operation
• Typical Max Data Rates
  • 500 Mbps (1.8-V to 3.3-V Translation)
  • 320 Mbps (<1.8-V to 3.3-V Translation)
  • 320 Mbps (Translate to 2.5 V or 1.8 V)
  • 280 Mbps (Translate to 1.5 V)
  • 240 Mbps (Translate to 1.2 V)
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
  • ±2000-V Human Body Model (A114-A)
  • 200-V Machine Model (A115-A)
  • ±1000-V Charged-Device Model (C101)

• Personal Electronic
• Industrial
• Enterprise
• Telecom

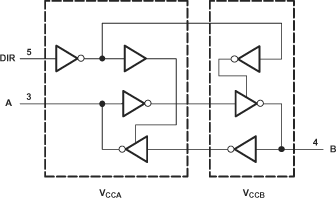

This single-bit noninverting bus transceiver uses two separate configurable power-supply rails. The SN74AVC1T45 is optimized to operate with VCCA/VCCB set at 1.4 V to 3.6 V. It is operational with VCCA/VCCB as low as 1.2 V. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2 V to 3.6 V. This allows for universal low-voltage, bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, and 3.3-V voltage nodes.
