SN74LV4051A技术文档下载：

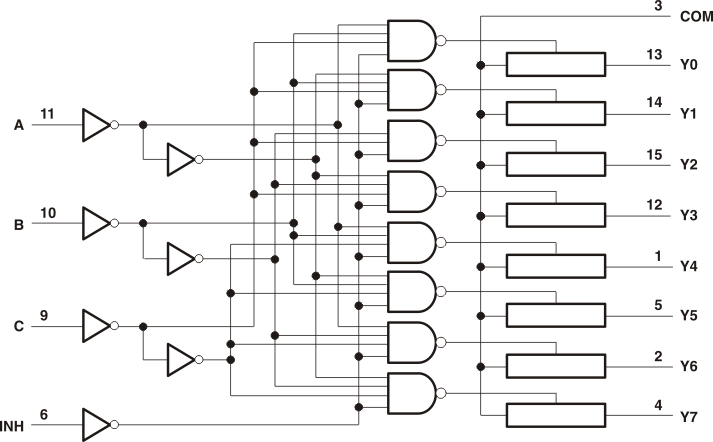

SN74LV4051A - 产品图解：
SN74LV4051A - 8 通道模拟多路复用器/多路解复用器
SN74LV4051A是TI公司的一款模拟多路复用器/多路解复用器产品，SN74LV4051A是8 通道模拟多路复用器/多路解复用器，本页介绍了SN74LV4051A的产品说明、应用、特性等，并给出了与SN74LV4051A相关的TI元器件型号供参考。
SN74LV4051A - 8 通道模拟多路复用器/多路解复用器 - 模拟多路复用器/多路解复用器 - 多路复用器/多路解复用器(Mux/Demux) - TI公司（Texas Instruments，德州仪器）
产品特性
- 2-V to 5.5-V VCC Operation
- Support Mixed-Mode Voltage Operation on All Ports
- High On-Off Output-Voltage Ratio
- Low Crosstalk Between Switches
- Individual Switch Controls
- Extremely Low Input Current
- Latch-Up Performance Exceeds 100-mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
产品应用
- Telecommunications
- eCall
- Infotainment
产品说明
The SN74LV4051A 8-channel CMOS analog multiplexers and demultiplexers are designed for 2-V to 5.5-V VCC operation.
The SN74LV4051A devices handle both analog and digital signals. Each channel permits signals with amplitudes up to 5.5-V (peak) to be transmitted in either direction.
Applications include: signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
产品器件信息
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| SN74LV4051A | TSSOP (16) | 5.00 mm × 6.30 mm |
| SOIC (16) | 9.90 mm × 6.00 mm | |
| SSOP (16) | 6.20 mm × 7.80 mm | |
| TVSOP (16) | 3.60 mm × 6.40 mm | |
| PDIP (16) | 19.30 mm × 6.35 mm | |
| SO (16) | 3.60 mm × 6.40 mm | |
| VQFN (16) | 3.50 mm × 4.00 mm |
