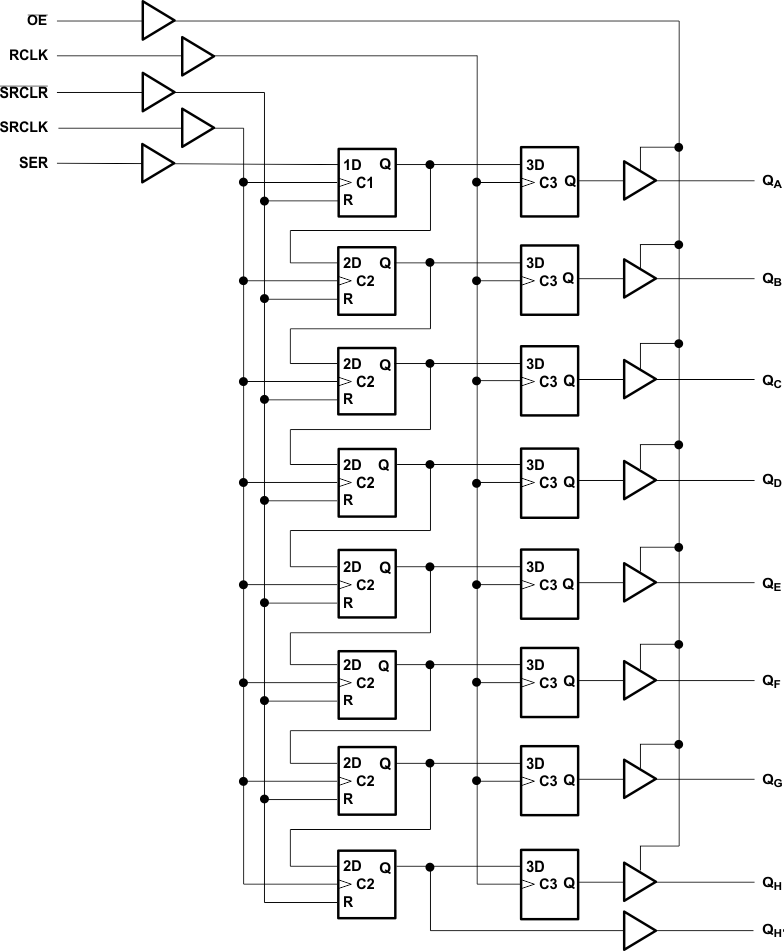

SN74LV595A - 产品图解：
SN74LV595A - 具有三态输出寄存器的 8 位移位寄存器
SN74LV595A是TI公司的一款移位寄存器产品，SN74LV595A是具有三态输出寄存器的 8 位移位寄存器，本页介绍了SN74LV595A的产品说明、应用、特性等，并给出了与SN74LV595A相关的TI元器件型号供参考。
SN74LV595A - 具有三态输出寄存器的 8 位移位寄存器 - 移位寄存器 - 触发器/锁存器/寄存器 - TI公司（Texas Instruments，德州仪器）
产品特性
- 2-V to 5.5-V VCC Operation
- Max tpd of 7.1 ns at 5 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
- Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25°C
- Support Mixed-Mode Voltage Operation on All Ports
- 8-Bit Serial-In, Parallel-Out Shift
- Ioff Supports Live Insertion, Partial Power-Down Mode, and Back-Drive Protection
- Shift Register Has Direct Clear
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model
- 200-V Machine Model
- 1000-V Charged-Device Model
产品应用
- Network Switches
- Power Infrastructures
- PCs and Notebooks
- LED Displays
- Servers
- I/O Expanders
产品说明
The SN74LV595A device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Both the shift register clock (SRCLK) and storage register clock (RCLK) are positive-edge triggered.
Device Information
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| SNx4LV595A | VQFN (16) | 4.00 mm × 3.50 mm |
| TSSOP (16) | 5.00 mm × 4.40 mm | |
| SOP (16) | 10.20 mm × 5.30 mm | |
| SOIC (16) | 9.00 mm × 3.90 mm |
