TI产品 - SN74LVC1GX04介绍

SN74LVC1GX04 - 晶体振荡器驱动器

SN74LVC1GX04是TI德州仪器公司的一款无产品，SN74LVC1GX04是晶体振荡器驱动器，本站介绍了SN74LVC1GX04的封装应用图解、特点和优点、功能等，并给出了与SN74LVC1GX04相关的TI元器件型号供参考。

SN74LVC1GX04 - 晶体振荡器驱动器 - 无 - 小尺寸逻辑器件 - 德州仪器

产品特性
  • Available in Texas Instruments NanoStar™ and NanoFree™ Packages
  • Supports 5-V VCC Operation
  • Inputs Accept Voltages to 5.5 V
  • One Unbuffered Inverter (SN74LVC1GU04) and One Buffered Inverter (SN74LVC1G04)
  • Suitable for Commonly Used Clock Frequencies:
    • 15 kHz, 3.58 MHz, 4.43 MHz, 13 MHz, 25 MHz, 26 MHz, 27 MHz, 28 MHz
  • Maximum tpd of 2.4 ns at 3.3 V
  • Low Power Consumption, 10-μA Maximum ICC
  • ±24-mA Output Drive at 3.3 V
  • Ioff Supports Partial-Power-Down Mode Operation
  • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  • ESD Protection Exceeds JESD 22
    • 2000-V Human Body Model (A114-A)
    • 1000-V Charged-Device Model (C101)
产品应用
  • Crystal Oscillators
  • Clock Generation
产品说明

The SN74LVC1GX04 device is designed for 1.65-V to 5.5-V VCC operation. This device incorporates the SN74LVC1GU04 (inverter with unbuffered output) and the SN74LVC1G04 (inverter) functions into a single device. The LVC1GX04 is optimized for use in crystal oscillator applications.

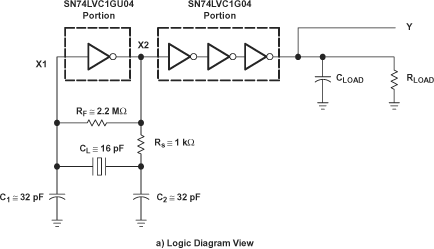

X1 and X2 can be connected to a crystal or resonator in oscillator applications. The device provides an additional buffered inverter (Y) for signal conditioning (see Figure 5). The additional buffered inverter improves the signal quality of the crystal oscillator output by making it rail to rail.

NanoStar and NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using Ioff (Y output only). The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
SN74LVC1GX04DBVSOT-23 (6)2.90 mm × 1.60 mm
SN74LVC1GX04DCKSC70 (6)2.00 mm × 1.25 mm
SN74LVC1GX04DRLSOT (6)1.60 mm × 1.20 mm
