SN74LVC2G126 - 具有三态输出的双路总线缓冲器闸

SN74LVC2G126是TI德州仪器公司的一款TI芯片产品，SN74LVC2G126是具有三态输出的双路总线缓冲器闸，本站介绍了SN74LVC2G126的封装应用图解、特点和优点、功能等，并给出了与SN74LVC2G126相关的TI元器件型号供参考。

SN74LVC2G126 - 具有三态输出的双路总线缓冲器闸 - TI芯片 - 小尺寸逻辑器件 - 德州仪器

产品特性

Available in the Texas Instruments NanoFree™ Package
Supports 5-V VCC Operation
Inputs Accept Voltages to 5.5 V
Max tpd of 4ns at 3.3V
Low Power Consumption, 10-µA Max ICC
±24-mA Output Drive at 3.3 V
Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25°C
Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Can Be Used as a Down Translator to Translate Inputs From a Max of 5.5 V Down to the VCC Level
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model
- 200-V Machine Model
- 1000-V Charged-Device Model

产品应用

Cable Modem Termination Systems
High-Speed Data Acquisition and Generation
Military: Radars and Sonars
Motor Controls: High-Voltage
Power Line Communication Modems
SSDs: Internal or External
Video Broadcasting and Infrastructure: Scalable Platforms
Video Broadcasting: IP-Based Multi-Format Transcoders
Video Communication Systems

产品说明

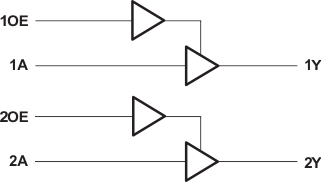

These bus transceivers are designed for 1.65-V to 3.6-V VCC operation. The SN74LVC2G126 device is a dual line driver with 3-state output. The output is disabled when the output-enable input is low.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE
SN74LVC2G126	SM8 (8)	2.95 mm × 2.80 mm
	US8 (8)	2.30 mm × 2.00 mm
	DSBGA (8)	1.91 mm × 0.91 mm
