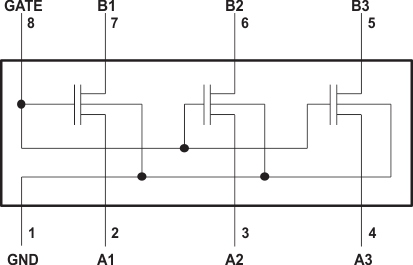

SN74TVC3306 - 产品图解：
SN74TVC3306 - 双路钳位电压
SN74TVC3306是TI公司的一款转换多路复用器/多路解复用器产品，SN74TVC3306是双路钳位电压，本页介绍了SN74TVC3306的产品说明、应用、特性等，并给出了与SN74TVC3306相关的TI元器件型号供参考。
SN74TVC3306 - 双路钳位电压 - 转换多路复用器/多路解复用器 - 多路复用器/多路解复用器(Mux/Demux) - TI公司（Texas Instruments，德州仪器）
产品特性
- Designed to Be Used in Voltage-Limiting Applications
- 3.5-Ω On-State Connection Between Ports A and B
- Flow-Through Pinout for Ease of Printed Circuit Board Trace Routing
- Direct Interface With GTL+ Levels
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model
- 200-V Machine Model
- 1000-V Charged-Device Model
产品应用
- Voltage Level Translation
- Signal Switching
- Bus Isolation
产品说明
The SN74TVC3306 device provides three parallel NMOS pass transistors with a common unbuffered gate. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.
The device can be used as a dual switch, with the gates cascaded together to a reference transistor. The low-voltage side of each pass transistor is limited to a voltage set by the reference transistor. This is done to protect components with inputs that are sensitive to high-state voltage-level overshoots.
产品器件信息
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| SN74TVC3306 | SM8 (8) | 3.00 mm x 2.80 mm |
| US8 (8) | 2.30 mm x 2.00 mm |
