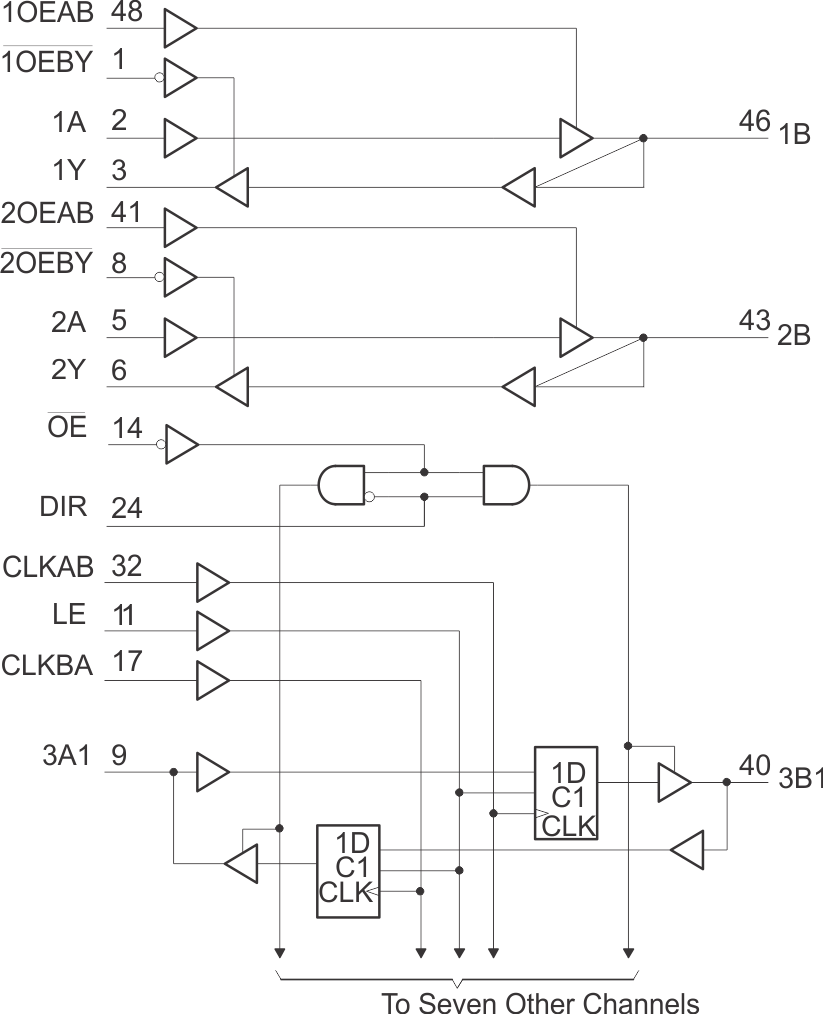

SN74VMEH22501A-EP - 产品图解：
SN74VMEH22501A-EP-增强型产品 8 位通用总线收发器和 2 个 1 位总线收发器
SN74VMEH22501A-EP-通用总线收发器(UBT)-通用总线功能-逻辑
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - SN74VMEH22501A-EP介绍

SN74VMEH22501A-EP - 增强型产品 8 位通用总线收发器和 2 个 1 位总线收发器

SN74VMEH22501A-EP是TI德州仪器公司的一款通用总线收发器(UBT)产品，SN74VMEH22501A-EP是增强型产品 8 位通用总线收发器和 2 个 1 位总线收发器，本站介绍了SN74VMEH22501A-EP的封装应用图解、特点和优点、功能等，并给出了与SN74VMEH22501A-EP相关的TI元器件型号供参考。

SN74VMEH22501A-EP - 增强型产品 8 位通用总线收发器和 2 个 1 位总线收发器 - 通用总线收发器(UBT) - 通用总线功能 - 德州仪器

产品特性
  • Controlled Baseline
    • One Assembly/Test Site, One Fabrication Site
  • Enhanced Diminishing Manufacturing Sources (DMS) Support
  • Enhanced Product-Change Notification
  • Qualification Pedigree(1)
  • Member of the Texas Instruments Widebus™ Family
  • UBT™ Transceiver Combines D-Type Latches and D-Type Flip-Flops for Operation in Transparent, Latched, or ClockedModes
  • OEC™ Circuitry Improves Signal Integrity and Reduces Electromagnetic Interference (EMI)
  • Compliant With VME64, 2eVME, and 2eSST Protocols Validated at TA = –40°C to 85°C
  • Bus Transceiver Split LVTTL Port Provides a Feedback Path for Control and Diagnostics Monitoring
  • I/O Interfaces are 5-V Tolerant
  • B-Port Outputs (–48mA/64mA)
  • Y and A-Port Outputs (–12mA/12mA)
  • Ioff, Power-Up 3-State, and BIAS VCC Support Live Insertion
  • Bus Hold on 3A-Port Data Inputs
  • 26-Ω Equivalent Series Resistor on 3APorts and Y Outputs
  • Flow-Through Architecture Facilitates Printed Circuit Board Layout
  • Distributed VCC and GND Pins Minimize High-Speed Switching Noise
  • Latch-Up Performance Exceeds 100 mA Per JESD 78, ClassII
  • ESD Protection Exceeds JESD 22
    • 2000-V Human-Body Model (A114-A)
    • 200-V Machine Model (A115-A)
    • 1000-V Charged-Device Model (C101)
产品应用
  • Industrial Controls
  • Telecommunications
  • Instrumentation Systems
产品说明

The SN74VMEH22501A-EP 8-bit universal bus transceiver has two integral 1-bit three-wire bus transceivers and is designed for 3.3-V VCC operation with 5-V tolerant inputs. The UBT transceiver allows transparent, latched, and flip-flop modes of data transfer, and the separate LVTTL input and outputs on the bus transceivers provide a feedback path for control and diagnostics monitoring. This device provides a high-speed interface between cards operating at LVTTL logic levels and VME64, VME64x, or VME320(2) backplane topologies.

Device Information(3)
PART NUMBERPACKAGEBODY SIZE (NOM)
SN74VMEH22501A-EPTSSOP (48)4.40 mm × 9.70 mm
TVSOP (48)6.10 mm × 12.50 mm
  • Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life. Such qualification testing should not be viewed as justifying use of this component beyond specified performance and environmental limits.
  • VME320 is a patented backplane construction by Arizona Digital, Inc.
