SN75469 - 高电压大电流达林顿晶体管阵列

SN75469是TI德州仪器公司的一款外围驱动器和传动器产品，SN75469是高电压大电流达林顿晶体管阵列，本站介绍了SN75469的封装应用图解、特点和优点、功能等，并给出了与SN75469相关的TI元器件型号供参考。

SN75469 - 高电压大电流达林顿晶体管阵列 - 外围驱动器和传动器 - 其它接口 - 德州仪器

产品特性

500-mA Rated Collector Current (Single Output)
High-Voltage Output 100 V
Output Clamp Diodes
Inputs Compatible With Various Types of Logic
Relay Driver Applications
Higher-Voltage Versions of ULN2003A and ULN2004A, for Commercial Temperature range

产品应用

Relay Drivers
Hammer Drivers
Lamp Drivers
Display Drivers (LED and Gas Discharge)
Line Drivers
Logic Buffers

产品说明

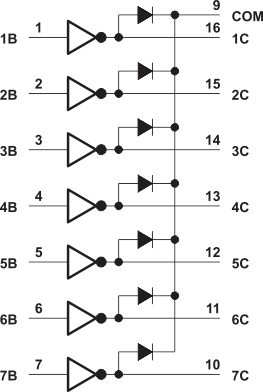

The SN75468 and SN75469 are high-voltage, high-current Darlington transistor arrays. Each consists of seven NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of each Darlington pair is 500 mA. The Darlington pairs may be paralleled for higher current capability. Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers.

The SN75468 has a 2700-Ω series base resistor for each Darlington pair for operation directly with TTL or 5-V CMOS. The SN75469 has a 10.5-kΩ series base resistor to allow its operation directly with CMOS or PMOS that use supply voltages of 6 to 15 V. The required input current is below that of the SN75468.

产品器件信息

PART NUMBER	PACKAGE (PIN)	BODY SIZE (NOM)
SN7546x	D (16)	9.90 mm × 3.91 mm
	N (16)	19.30 mm × 6.35 mm
	NS (16)	10.30 mm × 5.30 mm
