SN75HVD3082E - 低功耗半双工 RS-485 收发器

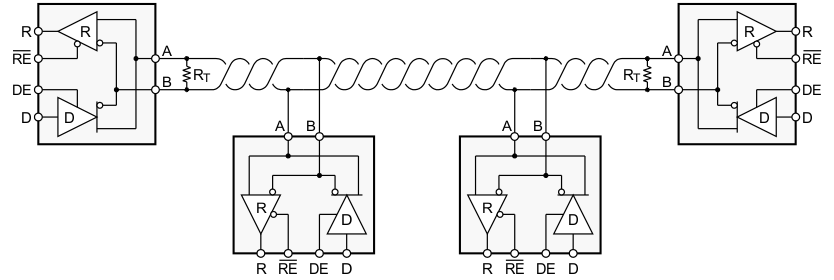

SN75HVD3082E是TI德州仪器公司的一款无产品，SN75HVD3082E是低功耗半双工 RS-485 收发器，本站介绍了SN75HVD3082E的封装应用图解、特点和优点、功能等，并给出了与SN75HVD3082E相关的TI元器件型号供参考。

SN75HVD3082E - 低功耗半双工 RS-485 收发器 - 无 - RS-485收发器 - 德州仪器

产品特性

Available in a Small MSOP-8 Package
Meets or Exceeds the Requirements of the TIA/EIA-485A Standard
Low Quiescent Power
- 0.3-mA Active Mode
- 1-nA Shutdown Mode
1/8 Unit Load up to 256 Nodes on a Bus
Bus-Pin ESD Protection up to 15 kV
Industry-Standard SN75176 Footprint
Failsafe Receiver (Bus Open, Bus Shorted, Bus Idle)
Glitch-Free Power-Up and Power-Down Bus Inputs and Outputs

产品应用

Energy Meter Networks
Motor Control
Power Inverters
Industrial Automation
Building Automation Networks
Battery-Powered Applications
Telecommunications Equipment

产品说明

The SNx5HVD308xE devices are half-duplex transceivers designed for RS-485 data bus networks. Powered by a 5-V supply, they are fully compliant with TIA/EIA-485A standard. With controlled transition times, these devices are suitable for transmitting data over long twisted-pair cables. SN65HVD3082E and SN75HVD3082E devices are optimized for signaling rates up to 200 kbps. The SN65HVD3085E device is suitable for data transmission up to 1 Mbps, whereas the SN65HVD3088E device is suitable for applications that require signaling rates up to 20 Mbps.

These devices are designed to operate with very low supply current, typically 0.3 mA, exclusive of the load. When in the inactive-shutdown mode, the supply current drops to a few nanoamps, which makes these devices ideal for power-sensitive applications.

The wide common-mode range and high ESD-protection levels of these devices makes them suitable for demanding applications such as energy meter networks, electrical inverters, status and command signals across telecom racks, cabled chassis interconnects, and industrial automation networks where noise tolerance is essential. These devices match the industry-standard footprint of the SN75176 device. Power-on-reset circuits keep the outputs in a high-impedance state until the supply voltage has stabilized. A thermal-shutdown function protects the device from damage due to system fault conditions. The SN75HVD3082E is characterized for operation from 0°C to 70°C and SN65HVD308xE are characterized for operation from –40°C to +85°C air temperature.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
SN65HVD3082E SH65HVD3088E	SOIC (8)	4.90 mm × 3.91 mm
	VSSOP (8)	3.00 mm × 3.00 mm
	PDIP (8)	9.81 mm × 6.35 mm
SN75HVD3082E SN65HVD3085E	SOIC (8)	4.90 mm × 3.91 mm
SN75HVD3082E SN65HVD3085E	VSSOP (8)	3.00 mm × 3.00 mm
