TCA6416A - 低压 16 位 I2C 和 SMBus I/O 扩展器

TCA6416A是TI德州仪器公司的一款I2CIO扩展器产品，TCA6416A是低压 16 位 I2C 和 SMBus I/O 扩展器，本站介绍了TCA6416A的封装应用图解、特点和优点、功能等，并给出了与TCA6416A相关的TI元器件型号供参考。

TCA6416A - 低压 16 位 I2C 和 SMBus I/O 扩展器 - I2CIO扩展器 - I2C - 德州仪器

产品特性

I2C to Parallel Port Expander
Operating Power-Supply Voltage Range of 1.65V to 5.5V
Allows Bidirectional Voltage-Level Translation and GPIO Expansion Between 1.8-V, 2.5-V, 3.3-V, and 5-V I2C Bus and P-Ports
Low Standby Current Consumption of 3μA
5-V Tolerant I/O Ports
400-kHz Fast I2C Bus
Hardware Address Pin Allows Two TCA6416A Devices on the Same I2C/SMBus Bus
Active-Low Reset Input (RESET)
Open-Drain Active-Low Interrupt Output (INT)
Input/Output Configuration Register
Polarity Inversion Register
Internal Power-On Reset
Power-Up With All Channels Configured as Inputs
No Glitch On Power Up
Noise Filter on SCL/SDA Inputs
Latched Outputs With High-Current Drive Maximum Capability for Directly Driving LEDs
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

产品应用

Servers
Routers (Telecom Switching Equipment)
Personal Computers
Personal Electronics (For Example, Gaming Consoles)
Industrial Automation
Products With GPIO-Limited Processors

产品说明

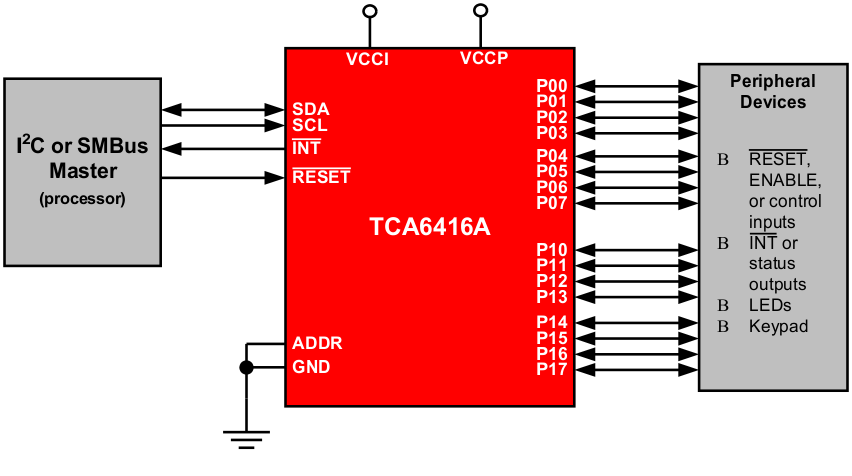

The TCA6416A is a 24-pin device that provides 16-bits of general purpose parallel input/output (I/O) expansion for the two-line bidirectional I2C bus (or SMBus) protocol. The device can operate with a power supply voltage ranging from 1.65V to 5.5V on the I2C bus side (VCCI) and a power supply voltage ranging from 1.65V to 5.5V on the P-port side (VCCP).

The device supports both 100-kHz (Standard-mode) and 400-kHz (Fast-mode) clock frequencies. I/O expanders such as the TCA6416A provide a simple solution when additional I/Os are needed for switches, sensors, push-buttons, LEDs, fans, etc.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TCA6416A	TSSOP (24)	7.80 mm × 4.40 mm
	WQFN (24)	4.00 mm × 4.00 mm
	BGA Microstar Junior (24)	3.00 mm × 3.00 mm
