TFP410 - PanelBus DVI 发送器 165MHz

TFP410是TI德州仪器公司的一款PanelBus(DVI)产品，TFP410是PanelBus DVI 发送器 165MHz，本站介绍了TFP410的封装应用图解、特点和优点、功能等，并给出了与TFP410相关的TI元器件型号供参考。

TFP410 - PanelBus DVI 发送器 165MHz - PanelBus(DVI) - 显示和成像串行器/解串器 - 德州仪器

产品特性

Digital Visual Interface (DVI) Compliant(1)
Supports Pixel Rates up to 165 MHz (Including 1080 p and WUXGA at 60 Hz)
Universal Graphics Controller Interface
- 12-Bit, Dual-Edge and 24-Bit, Single-Edge Input Modes
- Adjustable 1.1 V to 1.8 V and Standard 3.3 V CMOS Input Signal Levels
- Fully Differential and Single-Ended Input Clocking Modes
- Standard Intel 12-Bit Digital Video Port Compatible as on Intel™ 81x Chipsets
Enhanced PLL Noise Immunity
- On-Chip Regulators and Bypass Capacitors for Reducing System Costs
Enhanced Jitter Performance
- No HSYNC Jitter Anomaly
- Negligible Data-Dependent Jitter
Programmable Using I2C Serial Interface
Monitor Detection Through Hot-Plug and Receiver Detection
Single 3.3-V Supply Operation
64-Pin TQFP Using TI’s PowerPAD™ Package
TI’s Advanced 0.18-µm EPIC-5™ CMOS Process Technology
Pin Compatible With SiI164 DVI Transmitter (1)

(1) The digital visual interface (DVI) specification is an industry standard developed by the digital display working group (DDWG) for high-speed digital connection to digital displays and has been adopted by industry-leading PC and consumer electronics manufacturers. The TFP410 is compliant to the DVI Revision 1.0 specification.

产品应用

DVD
Blu-ray
HD Projectors

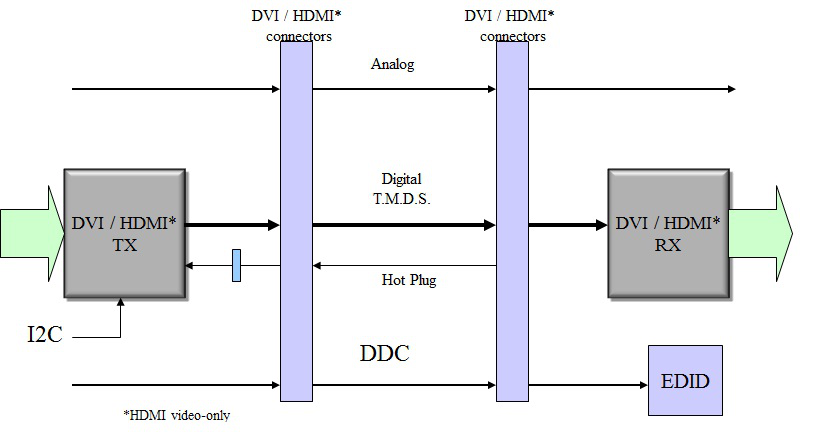

DVI/HDMI Transmitter(2)(1)

(1) HDMI video-only

产品说明

The TFP410 device is a Texas Instruments PanelBus™ flat-panel display product, part of a comprehensive family of end-to-end DVI 1.0-compliant solutions, targeted at the PC and consumer electronics industry.

The TFP410 device provides a universal interface to allow a glueless connection to most commonly available graphics controllers. Some of the advantages of this universal interface include selectable bus widths, adjustable signal levels, and differential and single-ended clocking. The adjustable 1.1-V to 1.8-V digital interface provides a low-EMI, high-speed bus that connects seamlessly with 12-bit or 24-bit interfaces. The DVI interface supports flat-panel display resolutions up to UXGA at 165 MHz in 24-bit true color pixel format.

The TFP410 device combines PanelBus circuit innovation with TI’s advanced 0.18 μm EPIC-5 CMOS process technology and TI’s ultralow ground inductance PowerPAD package. The result is a compact 64-pin TQFP package providing a reliable, low-current, low-noise, high-speed digital interface solution.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TFP410	HTQFP (64)	10.00 mm × 10.00 mm
