TI产品 - SN65HVD1781介绍

SN65HVD1781 - 具有故障保护功能的 70V RS-485 收发器

SN65HVD1781是TI德州仪器公司的一款无产品，SN65HVD1781是具有故障保护功能的 70V RS-485 收发器，本站介绍了SN65HVD1781的封装应用图解、特点和优点、功能等，并给出了与SN65HVD1781相关的TI元器件型号供参考。

SN65HVD1781 - 具有故障保护功能的 70V RS-485 收发器 - 无 - RS-485收发器 - 德州仪器

产品特性
  • Bus-Pin Fault Protection to:
    • > ±70 V (SN65HVD1780, SN65HVD1781)
    • > ±30 V (SN65HVD1782)
  • Operation With 3.3-V to 5-V Supply Range
  • ±16-kV HBM Protection on Bus Pins
  • Reduced Unit Load for Up to 320 Nodes
  • Failsafe Receiver for Open-Circuit, Short-Circuit, and Idle-Bus Conditions
  • Low Power Consumption
    • Low Standby Supply Current, 1 µA Maximum
    • ICC 4-mA Quiescent Current During Operation
  • Pin-Compatible With Industry-Standard SN75176
  • Signaling Rates of 115 kbps, 1 Mbps, and up to 10 Mbps
产品应用
  • HVAC Networks
  • Security Electronics
  • Building Automation
  • Telecommunication Equipment
  • Motion Control
  • Industrial Networks
产品说明

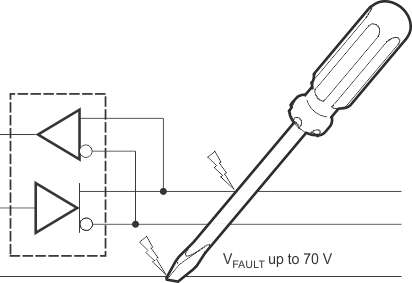

The SN65HVD178x devices are designed to survive overvoltage faults such as direct shorts to power supplies, mis-wiring faults, connector failures, cable crushes, and tool mis-applications. The devices are also robust to ESD events with high levels of protection to the human-body-model specification.

The SN65HVD178x devices combine a differential driver and a differential receiver, which operate from a single power supply. In the SN65HVD1782, the driver differential outputs and the receiver differential inputs are connected internally to form a bus port suitable for half-duplex (two-wire bus) communication. This port features a wide common-mode voltage range, making the devices suitable for multipoint applications over long cable runs. These devices are characterized from –40°C to 125°C. These devices are pin-compatible with the industry-standard SN75176 transceiver, making them drop-in upgrades in most systems.

These devices are fully compliant with ANSI TIA/EIA 485-A with a 5-V supply and can operate with a 3.3-V supply with reduced driver output voltage for low-power applications. For applications where operation is required over an extended common-mode voltage range, see the SN65HVD1785 (SLLS872) data sheet.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
SN65HVD178xSOIC (8)4.90 mm × 3.91 mm
PDIP (8)9.81 mm × 6.35 mm
