TLV1117LV - 1A 固定正电压低压降稳压器
TLV1117LV是TI德州仪器公司的一款单通道LDO产品,TLV1117LV是1A 固定正电压低压降稳压器,本站介绍了TLV1117LV的封装应用图解、特点和优点、功能等,并给出了与TLV1117LV相关的TI元器件型号供参考。
TLV1117LV - 1A 固定正电压低压降稳压器 - 单通道LDO - 线性稳压器(LDO) - 德州仪器
- 1.5% Typical Accuracy
- Low IQ: 100 μA (Maximum)
- 500 Times Lower Than Standard 1117 Devices
- VIN: 2 V to 5.5 V
- Absolute Maximum VIN = 6 V
- Stable With 0-mA Output Current
- Low Dropout: 455 mV at 1 A for VOUT = 3.3 V
- High PSRR: 65 dB at 1 kHz
- Minimum Ensured Current Limit: 1.1 A
- Stable With Cost-Effective Ceramic Capacitors:
- With 0-Ω ESR
- Temperature Range: –40°C to 125°C
- Thermal Shutdown and Overcurrent Protection
- Available in SOT-223 Package
- See Mechanical, Packaging, and Orderable Information at the end of this document for a complete list of available voltage options.
- Set Top Boxes
- TVs and Monitors
- PC Peripherals, Notebooks, Motherboards
- Modems and Other Communication Products
- Switching Power Supply Post-Regulation
The TLV1117LV series of low-dropout (LDO) linear regulators is a low input voltage version of the popular TLV1117 voltage regulator.
The TLV1117LV is an extremely low-power device that consumes 500 times lower quiescent current than traditional 1117 voltage regulators, making the device suitable for applications that mandate very low standby current. The TLV1117LV family of LDOs is also stable with 0 mA of load current; there is no minimum load requirement, making the device an ideal choice for applications where the regulator must power very small loads during standby in addition to large currents on the order of 1 A during normal operation. The TLV1117LV offers excellent line and load transient performance, resulting in very small magnitude undershoots and overshoots of output voltage when the load current requirement changes from less than 1 mA to more than 500 mA.
A precision bandgap and error amplifier provides 1.5% accuracy. A very high power-supply rejection ratio (PSRR) enables use of the device for post-regulation after a switching regulator. Other valuable features include low output noise and low-dropout voltage.

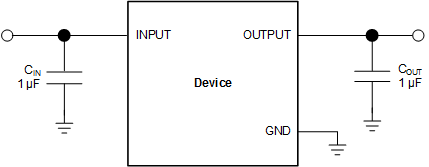

The device is internally compensated to be stable with 0-Ω equivalent series resistance (ESR) capacitors. These key advantages enable the use of cost-effective, small-size ceramic capacitors. Cost-effective capacitors that have higher bias voltages and temperature derating can also be used if desired.
The TLV1117LV series is available in a SOT-223 package.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TLV1117LV | SOT-223 (4) | 6.50 mm x 3.50 mm |
