TLV320AIC3204技术文档下载：

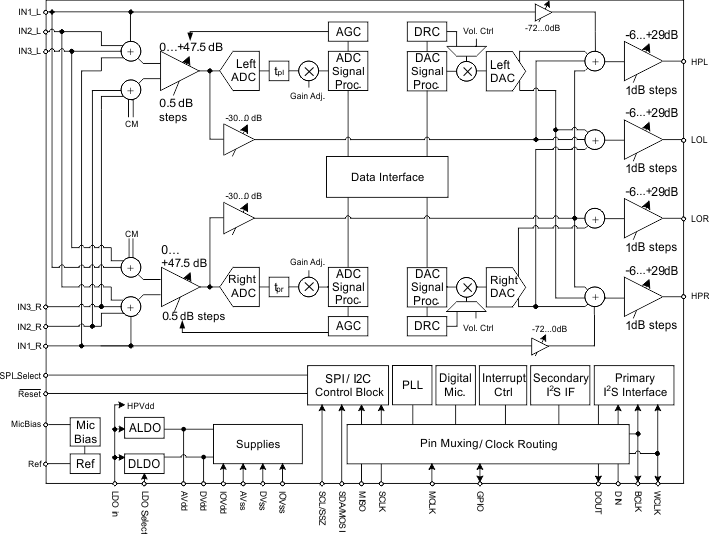

TLV320AIC3204 - 产品图解：
TLV320AIC3204 - 采用 Power TuneTM 技术的超低功耗立体声音频编解码器
TLV320AIC3204是TI公司的一款音频编解码器产品，TLV320AIC3204是采用 Power TuneTM 技术的超低功耗立体声音频编解码器，本页介绍了TLV320AIC3204的产品说明、应用、特性等，并给出了与TLV320AIC3204相关的TI元器件型号供参考。
TLV320AIC3204 - 采用 Power TuneTM 技术的超低功耗立体声音频编解码器 - 音频编解码器 - 音频转换器 - TI公司（Texas Instruments，德州仪器）
产品特性
- Stereo Audio DAC with 100dB SNR
- 4.1mW Stereo 48ksps DAC Playback
- Stereo Audio ADC with 93dB SNR
- 6.1mW Stereo 48ksps ADC Record
- PowerTune™
- Extensive Signal Processing Options
- Six Single-Ended or 3 Fully-Differential Analog Inputs
- Stereo Analog and Digital Microphone Inputs
- Stereo Headphone Outputs
- Stereo Line Outputs
- Very Low-Noise PGA
- Low Power Analog Bypass Mode
- Programmable Microphone Bias
- Programmable PLL
- Integrated LDO
- 5 mm x 5 mm 32-pin QFN Package
产品应用
- Portable Navigation Devices (PND)
- Portable Media Player (PMP)
- Mobile Handsets
- Communication
- Portable Computing
产品说明
The TLV320AIC3204 (also called the AIC3204) is a flexible, low-power, low-voltage stereo audio codec with programmable inputs and outputs, PowerTune capabilities, fixed predefined and parameterizable signal-processing blocks, integrated PLL, integrated LDOs and flexible digital interfaces.
产品器件信息
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TLV320AIC3204 | VQFN (32) | 5.00 mm x 5.00 mm |
