TLV62080 - 采用 2x2mm SON 封装的 1.2A 高效降压转换器

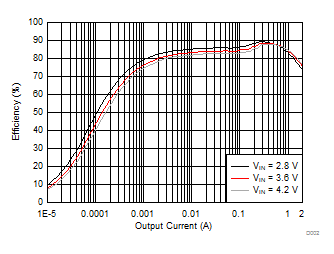

TLV62080是TI德州仪器公司的一款转换器（集成开关）产品，TLV62080是采用 2x2mm SON 封装的 1.2A 高效降压转换器，本站介绍了TLV62080的封装应用图解、特点和优点、功能等，并给出了与TLV62080相关的TI元器件型号供参考。

TLV62080 - 采用 2x2mm SON 封装的 1.2A 高效降压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

DCS-Control™ Architecture for Fast Transient Regulation
2.5 to 5.5-V Input Voltage Range (TLV62080)
2.7 to 5.5-V Input Voltage Range (TLV62084)
100% Duty Cycle for Lowest Dropout
Power Save Mode for Light Load Efficiency
Output Discharge Function
Power Good Output
Thermal Shutdown
Available in 2 mm × 2 mm 8-Terminal WSON Package
For Improved Features Set, See the TPS62080 datasheet (SLVSAE8)

产品应用

Battery-Powered Portable Devices
Point-of-Load Regulators
System Power Rail Voltage Conversion

产品说明

The TLV62080 and TLV62084 devices are low cost buck converters in small size with less external components. They are synchronous step-down converters with an input voltage range of 2.5 and 2.7 (2.5 V for TLV62080, 2.7 V for TLV62084) to 5.5 V. The TLV6208x device focuses on high-efficiency step-down conversion over a wide output current range. At medium to heavy loads, the TLV6208x converter operates in PWM mode and automatically enters power save mode operation at light-load currents to maintain high efficiency over the entire load current range.

To address the requirements of system power rails, the internal compensation circuit allows a large selection of external output capacitor values ranging from 10-µF up to 100-uF effective capacitance. With the DCS-Control™ (Direct Control with Seamless transition into power save mode) architecture excellent load transient performance and output voltage regulation accuracy are achieved. The device is available in 2-mm × 2-mm WSON package with Thermal Pad.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TLV62080	WSON (8)	2.00 mm × 2.00 mm
TLV62084	WSON (8)	2.00 mm × 2.00 mm
