1 Device Overview

1.1 Features

High-Efficiency 32-Bit CPU (TMS320C28x)
- 60 MHz (16.67-ns Cycle Time)
- 16 x 16 and 32 x 32 MAC Operations
- 16 x 16 Dual MAC
- Harvard Bus Architecture
- Atomic Operations
- Fast Interrupt Response and Processing
- Unified Memory Programming Model
- Code-Efficient (in C/C++ and Assembly)
Programmable Control Law Accelerator (CLA)
- 32-Bit Floating-Point Math Accelerator
- Executes Code Independently of the Main CPU
Dual-Zone Security Module
Endianness: Little Endian
Low Device and System Cost:
- Single 3.3-V Supply
- No Power Sequencing Requirement
- Integrated Power-on Reset and Brown-out Reset
- Low Power
- No Analog Support Pins
Clocking:
- Two Internal Zero-Pin Oscillators
- On-Chip Crystal Oscillator and External Clock Input
- Watchdog Timer Module
- Missing Clock Detection Circuitry
Up to 42 Individually Programmable, Multiplexed General-Purpose Input/Output (GPIO) Pins With Input Filtering
JTAG Boundary Scan Support
- IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture
Peripheral Interrupt Expansion (PIE) Block That Supports All Peripheral Interrupts
Three 32-Bit CPU Timers
Independent 16-Bit Timer in Each ePWM Module
On-Chip Memory
- Flash, SARAM, Message RAM, OTP, CLA Data ROM, Boot ROM, Secure ROM Available
128-Bit Security Key and Lock
- Protects Secure Memory Blocks
- Prevents Firmware Reverse Engineering
Serial Port Peripherals
- Three Serial Communications Interface (SCI) (Universal Asynchronous Receiver/Transmitter [UART]) Modules
- One Serial Peripheral Inteface (SPI) Module
- One Inter-Integrated-Circuit (I2C) Bus
- One Enhanced Controller Area Network (eCAN) Bus
Enhanced Control Peripherals
- Enhanced Pulse Width Modulator (ePWM)
- Enhanced Capture (eCAP) Module
- Enhanced Quadrature Encoder Pulse (eQEP) Module
Analog Peripherals
- One 12-Bit Analog-to-Digital Converter (ADC)
- One On-Chip Temperature Sensor for Oscillator Compensation
- Up to Seven Comparators With up to Three Integrated Digital-to-Analog Converters (DACs)
- One Buffered Reference DAC
- Up to Four Programmable Gain Amplifiers (PGAs)
- Up to Four Digital Filters
Advanced Emulation Features
- Analysis and Breakpoint Functions
- Real-Time Debug via Hardware
80-Pin PN Low-Profile Quad Flatpack (LQFP)

1.2 Applications

White Goods
Solar Microinverters and Converters
Sewing and Textile Machines
AC/DC Inverters
General Motor Control

1.3 Description

The F2805x Piccolo™ family of microcontrollers (MCUs) provides the power of the C28x core and CLA coupled with highly integrated control peripherals in low pin-count devices. This family is code-compatible with previous C28x-based code, and also provides a high level of analog integration.

An internal voltage regulator allows for single-rail operation. Analog comparators with internal 6-bit references have been added and can be routed directly to control the PWM outputs. The ADC converts from 0 to 3.3-V fixed full-scale range and supports ratio-metric VREFHI/VREFLO references. The ADC interface has been optimized for low overhead and latency.

The Analog Front End (AFE) contains up to seven comparators with up to three integrated DACs, one VREFOUT-buffered DAC, up to four PGAs, and up to four digital filters. The PGAs can amplify the input signal in three discrete gain modes. The actual number of AFE peripherals will depend upon the TMS320F2805x device number. See Section 8 for more details.

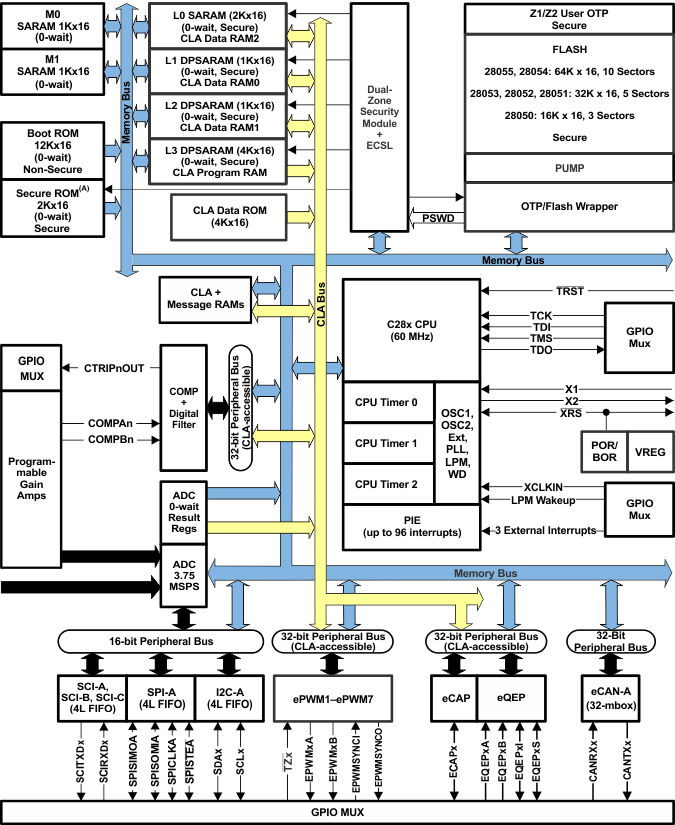

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE
TMS320F28055PN	LQFP (80)	12.0 mm x 12.0 mm
TMS320F28054PN	LQFP (80)	12.0 mm x 12.0 mm
TMS320F28053PN	LQFP (80)	12.0 mm x 12.0 mm
TMS320F28052PN	LQFP (80)	12.0 mm x 12.0 mm
TMS320F28051PN	LQFP (80)	12.0 mm x 12.0 mm
