TMS320F28069M - 具有 InstaSPIN-MOTION 的 Piccolo 微控制器
TMS320F28069M是TI德州仪器公司的一款实时控制产品,TMS320F28069M是具有 InstaSPIN-MOTION 的 Piccolo 微控制器,本站介绍了TMS320F28069M的封装应用图解、特点和优点、功能等,并给出了与TMS320F28069M相关的TI元器件型号供参考。
TMS320F28069M - 具有 InstaSPIN-MOTION 的 Piccolo 微控制器 - 实时控制 - 高性能MCU - 德州仪器
- High-Efficiency 32-Bit CPU (TMS320C28x)
- 90 MHz (11.11-ns Cycle Time)
- 16 x 16 and 32 x 32 Multiply and Accumulate (MAC) Operations
- 16 x 16 Dual MAC
- Harvard Bus Architecture
- Atomic Operations
- Fast Interrupt Response and Processing
- Unified Memory Programming Model
- Code-Efficient (in C/C++ and Assembly)
- Floating-Point Unit (FPU)
- Native Single-Precision Floating-Point Operations
- Programmable Control Law Accelerator (CLA)
- 32-Bit Floating-Point Math Accelerator
- Executes Code Independently of the Main CPU
- Viterbi, Complex Math, CRC Unit (VCU)
- Extends C28x Instruction Set to Support Complex Multiply, Viterbi Operations, and Cyclic Redundency Check (CRC)
- Embedded Memory
- Up to 256KB of Flash
- Up to 100KB of RAM
- 2KB of One-Time Programmable (OTP) ROM
- 6-Channel Direct Memory Access (DMA)
- Low Device and System Cost
- Single 3.3-V Supply
- No Power Sequencing Requirement
- Integrated Power-on Reset and Brown-out Reset
- Low-Power Operating Modes
- No Analog Support Pin
- Endianness: Little Endian
- JTAG Boundary Scan Support
- IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture
- Clocking
- Two Internal Zero-Pin Oscillators
- On-Chip Crystal Oscillator/External Clock Input
- Watchdog Timer Module
- Missing Clock Detection Circuitry
- Peripheral Interrupt Expansion (PIE) Block That Supports All Peripheral Interrupts
- Three 32-Bit CPU Timers
- Advanced Control Peripherals
- Up to 8 Enhanced Pulse-Width Modulator (ePWM) Modules
- 16 PWM Channels Total (8 HRPWM-Capable)
- Independent 16-Bit Timer in Each Module
- Three Input Enhanced Capture (eCAP) Modules
- Up to 4 High-Resolution Capture (HRCAP) Modules
- Up to 2 Enhanced Quadrature Encoder Pulse (eQEP) Modules
- 12-Bit Analog-to-Digital Converter (ADC), Dual Sample-and-Hold (S/H)
- Up to 3.46MSPS
- Up to 16 Channels
- On-Chip Temperature Sensor
- 128-Bit Security Key and Lock
- Protects Secure Memory Blocks
- Prevents Reverse-Engineering of Firmware
- Serial Port Peripherals
- Two Serial Communications Interface (SCI) [UART] Modules
- Two Serial Peripheral Interface (SPI) Modules
- One Inter-Integrated-Circuit (I2C) Bus
- One Multichannel Buffered Serial Port (McBSP) Bus
- One Enhanced Controller Area Network (eCAN)
- Universal Serial Bus (USB) 2.0 (see Device Comparison Table for Availability)
- Full-Speed Device Mode
- Full-Speed or Low-Speed Host Mode
- Up to 54 Individually Programmable, Multiplexed General-Purpose Input/Output (GPIO) Pins With Input Filtering
- Advanced Emulation Features
- Analysis and Breakpoint Functions
- Real-Time Debug via Hardware
- 2806x Packages
- 80-Pin PFP and 100-Pin PZP PowerPAD™ Thermally Enhanced Thin Quad Flatpacks (HTQFPs)
- 80-Pin PN and 100-Pin PZ Low-Profile Quad Flatpacks (LQFPs)
- Switch Mode Power Supplies (SMPSs)
- Solar Micro Inverters and Converters
- Power Factor Correction
- Smart Grid and Power Line Communications
- AC/DC Inverters

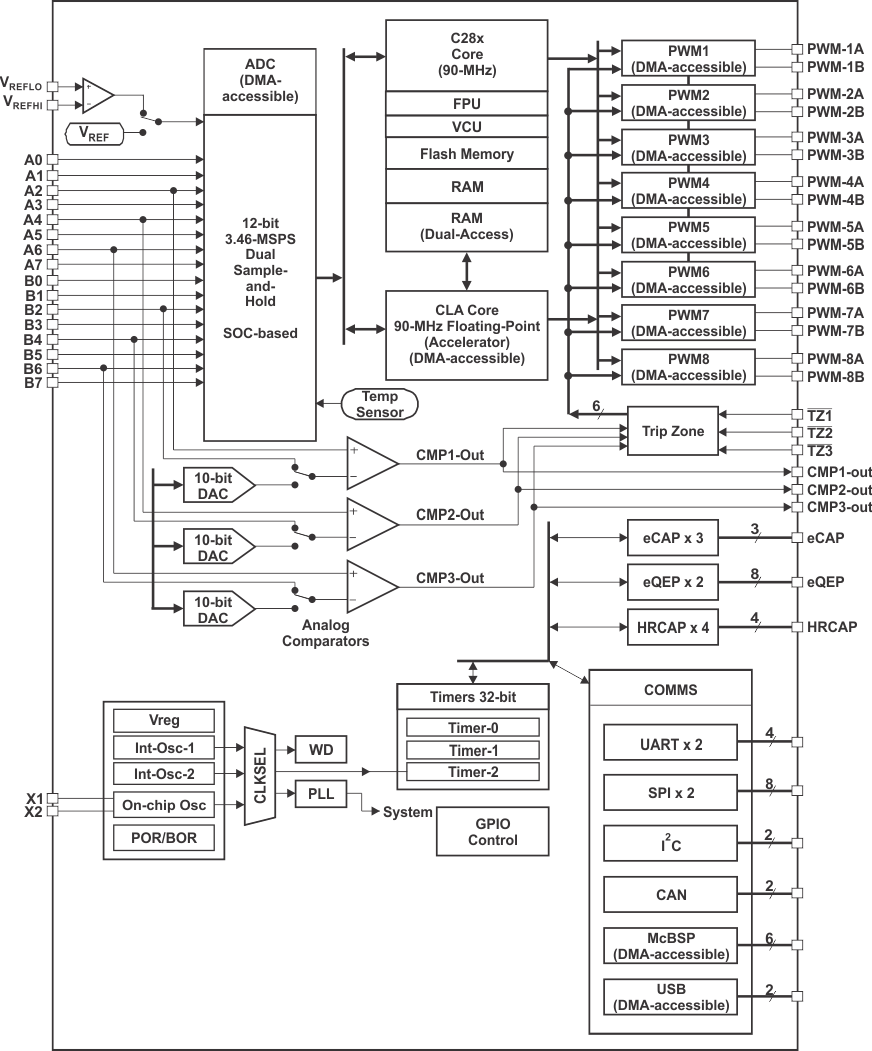

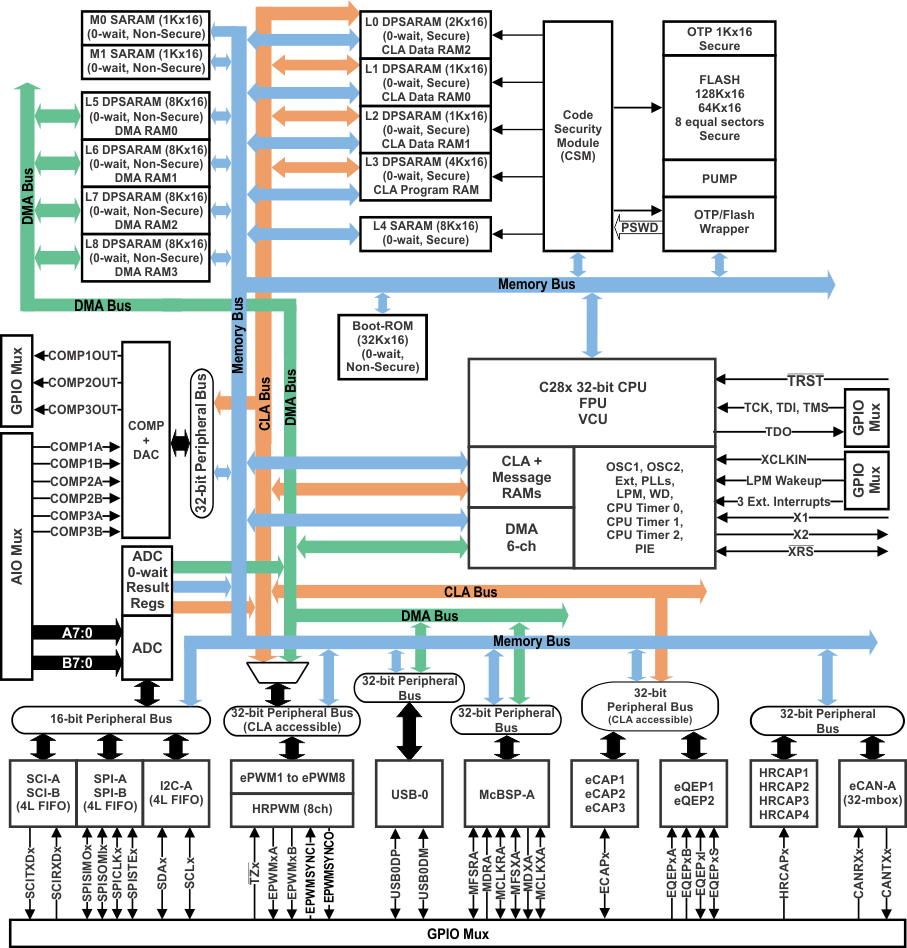

The F2806x Piccolo™ family of microcontrollers (MCUs) provides the power of the C28x core and CLA coupled with highly integrated control peripherals in low pin-count devices. This family is code-compatible with previous C28x-based code, and also provides a high level of analog integration.
An internal voltage regulator allows for single-rail operation. Enhancements have been made to the High-Resolution Pulse Width Modulator (HRPWM) module to allow for dual-edge control (frequency modulation). Analog comparators with internal 10-bit references have been added and can be routed directly to control the ePWM outputs. The ADC converts from 0 to 3.3-V fixed full-scale range and supports ratio-metric VREFHI/VREFLO references. The ADC interface has been optimized for low overhead and latency.
| PART NUMBER | PACKAGE | BODY SIZE |
|---|---|---|
| TMS320F28069PZP | HTQFP (100) | 14.0 mm x 14.0 mm |
| TMS320F28069PFP | HTQFP (80) | 12.0 mm x 12.0 mm |
| TMS320F28069PZ | LQFP (100) | 14.0 mm x 14.0 mm |
| TMS320F28069PN | LQFP (80) | 12.0 mm x 12.0 mm |
