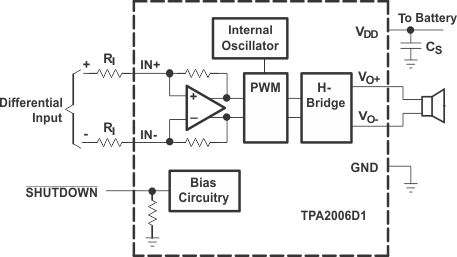

TPA2006D1 - 产品图解：
TPA2006D1-2.5W 单声道免滤波 D 类音频功率放大器
TPA2006D1-扬声器放大器（AB类/D类）-低功耗放大器-音频
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - TPA2006D1介绍

TPA2006D1 - 2.5W 单声道免滤波 D 类音频功率放大器

TPA2006D1是TI德州仪器公司的一款扬声器放大器（AB类/D类）产品，TPA2006D1是2.5W 单声道免滤波 D 类音频功率放大器，本站介绍了TPA2006D1的封装应用图解、特点和优点、功能等，并给出了与TPA2006D1相关的TI元器件型号供参考。

TPA2006D1 - 2.5W 单声道免滤波 D 类音频功率放大器 - 扬声器放大器（AB类/D类） - 低功耗放大器 - 德州仪器

产品特性
  • Maximum Battery Life and Minimum Heat
    • Efficiency With an 8-Ω Speaker:
      • 88% at 400 mW
      • 80% at 100 mW
    • 2.8-mA Quiescent Current
    • 0.5-μA Shutdown Current
  • SHUTDOWN Pin has 1.8-V Compatible Thresholds
  • Capable of Driving an 8-Ω Speaker (2.5 V ≤ VDD ≤ 5.5 V) and a 4-Ω Speaker (2.5 V ≤ VDD ≤ 4.2 V)
  • Only Three External Components
    • Optimized PWM Output Stage Eliminates LC Output Filter
    • Internally Generated 250-kHz Switching Frequency Eliminates Capacitor and Resistor
    • Improved PSRR (–75 dB) and Wide Supply Voltage (2.5 V to 5.5 V) Eliminates Need for a Voltage Regulator
    • Fully Differential Design Reduces RF Rectification and Eliminates Bypass Capacitor
    • Improved CMRR Eliminates Two Input Coupling Capacitors
  • Space-Saving 3 mm x 3 mm VSON Package (DRB)
产品应用

    Ideal for Wireless or Cellular Handsets and PDAs

产品说明

The TPA2006D1 device is a 1.45-W high efficiency filter-free class-D audio power amplifier in a 3 mm × 3 mm VSON package that requires only three external components. The SHUTDOWN pin is fully compatible with 1.8-V logic GPIO, such as are used on low-power cellular chipsets.

Features like 88% efficiency, –75-dB PSRR, improved RF-rectification immunity, and small total PCB footprint make the TPA2006D1 device ideal for cellular handsets. A fast start-up time of 1 ms with minimal pop makes the TPA2006D1 device ideal for PDA applications.

In cellular handsets, the earpiece, speaker phone, and melody ringer can each be driven by the TPA2006D1 device. The TPA2006D1 device allows independent gain while summing signals from separate sources, and has a low 36-μV noise floor, A-weighted.

The TPA2006D1 device has short-circuit and thermal protection.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPA2006D1VSON (8)3.00 mm ×3.00 mm
