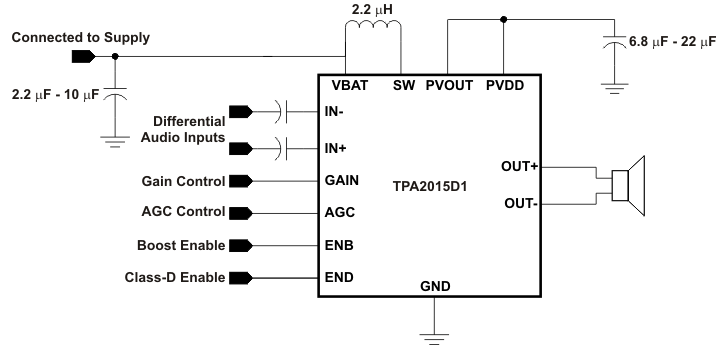

TPA2015D1 - 产品图解：
TPA2015D1-具有自适应升压和电池跟踪 SpeakerGuard AGC 的 2W D 类音频放大器
TPA2015D1-扬声器放大器（AB类/D类）-低功耗放大器-音频
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - TPA2015D1介绍

TPA2015D1 - 具有自适应升压和电池跟踪 SpeakerGuard AGC 的 2W D 类音频放大器

TPA2015D1是TI德州仪器公司的一款扬声器放大器（AB类/D类）产品，TPA2015D1是具有自适应升压和电池跟踪 SpeakerGuard AGC 的 2W D 类音频放大器，本站介绍了TPA2015D1的封装应用图解、特点和优点、功能等，并给出了与TPA2015D1相关的TI元器件型号供参考。

TPA2015D1 - 具有自适应升压和电池跟踪 SpeakerGuard AGC 的 2W D 类音频放大器 - 扬声器放大器（AB类/D类） - 低功耗放大器 - 德州仪器

产品特性
  • Built-In SpeakerGuardTM Automatic Gain Control (AGC) with Enhanced Battery Tracking
    • Limits Battery Current Consumption
    • Prevents Audio Clipping
  • 2 W into 8Ω Load From 3.6 V Supply (6% THD)
  • Integrated Adaptive Boost Converter
    • Increases Efficiency at Low Output Power
  • Low Quiescent Current of 1.7 mA from 3.6 V
  • Operates From 2.5 V to 5.2 V
  • Thermal and Short-Circuit Protection with Auto Recovery
  • Three Gain Settings: 6 dB, 15.5 dB, and 20 dB
  • Independent Control for Boost and Class-D
  • Pin-to-Pin Compatible with TPA2013D1
  • Available in 1.954 mm × 1.954 mm 16-ball DSBGA Package
产品应用
  • Cell Phones, PDA, GPS
  • Portable Electronics and Speakers
产品说明

The TPA2015D1 is a high efficiency Class-D audio power amplifier with battery-tracking SpeakerGuard™ AGC technology and an integrated adaptive boost converter that enhances efficiency at low output power. It drives up to 2W into an 8Ω speaker (6% THD). With 85% typical efficiency, the TPA2015D1 helps extend battery life when playing audio.

The built-in boost converter generates a 5.5V supply voltage for the Class-D amplifier. This provides a louder audio output than a stand-alone amplifier directly connected to the battery. The SpeakerGuardTM AGC adjusts the Class-D gain to limit battery current and prevent heavy clipping.

The TPA2015D1 has an integrated low-pass filter to improve the RF rejection and reduce DAC out-of-band noise, increasing the signal to noise ratio (SNR).

The TPA2015D1 is available in a space saving 1.954mm× 1.954mm, 0.5mm pitch DSBGA package (YZH).

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPA2015D1 DSBGA (16)2.00 mm × 2.00mm
