TPD2E001 - 用于高速数据接口的低电容 2 通道 +/-15KV ESD 保护阵列

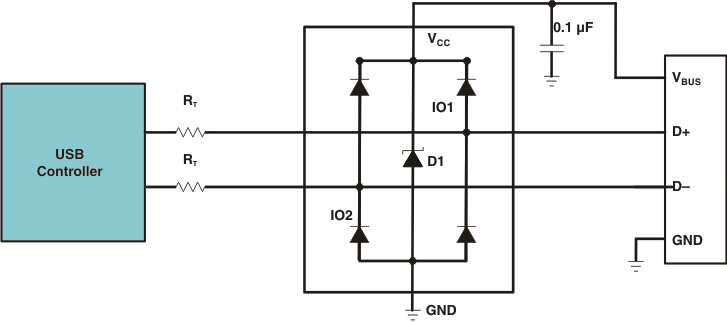

TPD2E001是TI德州仪器公司的一款高性能TVS二极管产品，TPD2E001是用于高速数据接口的低电容 2 通道 +/-15KV ESD 保护阵列，本站介绍了TPD2E001的封装应用图解、特点和优点、功能等，并给出了与TPD2E001相关的TI元器件型号供参考。

TPD2E001 - 用于高速数据接口的低电容 2 通道 +/-15KV ESD 保护阵列 - 高性能TVS二极管 - ESD保护二极管 - 德州仪器

产品特性

IEC 61000-4-2 ESD Protection (Level 4)
- ±8 kV Contact Discharge
- ±15 kV Air-Gap Discharge
IO Capacitance: 1.5 pF (Typ)
Low Leakage Current: 1 nA (Max)
Low Supply Current: 1 nA
0.9-V to 5.5-V Supply-Voltage Range
Space-Saving DRL, DRY, and QFN Package Options
Alternate 3, 4, 6-Channel options Available: TPD3E001, TPD4E001, TPD6E001

产品应用

USB 2.0
Ethernet
FireWire™
LVDS
SVGA Video Connections
Glucose Meters
Medical Imaging

产品说明

The TPD2E001 is a two-channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode array. The TPD2E001 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 Level 4 international standard.

The DRS package (3.00 mm x 3.00 mm) is also available as a non-magnetic package for medical imaging applications.

See also TPD2E2U06DRLR which is p2p compatible to TPD2E001DRLR and offers higher IEC ESD Protection, lower clamping voltage, and eliminates the input capacitor requirement.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPD2E001	SOT (5)	1.60 mm x 1.20 mm
	WSON (6)	3.00 mm x 3.00 mm
	USON (6)	1.45 mm x 1.00 mm
	SOP (4)	2.90 mm x 1.30 mm
