TPD2E007 - 用于 AC 信号数据接口的 2 通道 ESD 保护阵列

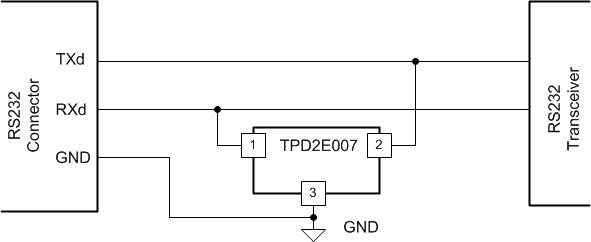

TPD2E007是TI德州仪器公司的一款高性能TVS二极管产品，TPD2E007是用于 AC 信号数据接口的 2 通道 ESD 保护阵列，本站介绍了TPD2E007的封装应用图解、特点和优点、功能等，并给出了与TPD2E007相关的TI元器件型号供参考。

TPD2E007 - 用于 AC 信号数据接口的 2 通道 ESD 保护阵列 - 高性能TVS二极管 - ESD保护二极管 - 德州仪器

产品特性

IEC 61000-4-2 Level 4 ESD Protection
- ±8-kV IEC 61000-4-2 Contact Discharge
- ±15-kV IEC 61000-4-2 Air-Gap Discharge
IEC 61000-4-5 Surge Protection
- 4.5-A Peak Pulse Current (8/20 µs Pulse)
IO Capacitance 15pF (max)
Low 50-nA Leakage Current
Space-Saving PicoStar™ and SOT Package

产品应用

Cell Phones
Audio Interface Connections
Consumer Electronics (DVR, Set-Top Box, TV)
Industrial Interfaces (RS-232, RS-485, RS-422, LVDS)

产品说明

This device is a Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection device designed to offer system level ESD solutions for wide range of portable and industrial applications. The back-to-back diode array allows AC-coupled or negative-going data transmission (audio interface, LVDS, RS-485, RS-232, etc.) without compromising signal integrity. This device exceeds the IEC 61000-4-2 (Level 4) ESD protection and is ideal for providing system level ESD protection for the internal ICs when placed near the connector.

The TPD2E007 is offered in a 4-bump PicoStar and 3-pin SOT (DGK) packages. The PicoStar package (YFMG4), with only 0.15 mm (Max) package height, is recommended for ultra space saving application where the package height is a key concern. The PicoStar package can be used in either embedded PCB board applications or in surface mount applications. The industry standard SOT package offers straightforward board layout option in legacy designs.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPD2E007	SOT (3)	2.00 mm x 1.25 mm
TPD2E007	PicoStar (4)	0.77 mm x 0.77 mm
