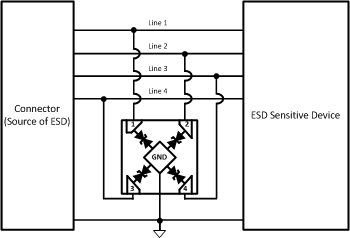

TPD4E101 - 产品图解：
TPD4E101-4 通道双向低电容 ESD 保护设备
TPD4E101-高性能TVS二极管-ESD保护二极管-接口
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - TPD4E101介绍

TPD4E101 - 4 通道双向低电容 ESD 保护设备

TPD4E101是TI德州仪器公司的一款高性能TVS二极管产品，TPD4E101是4 通道双向低电容 ESD 保护设备，本站介绍了TPD4E101的封装应用图解、特点和优点、功能等，并给出了与TPD4E101相关的TI元器件型号供参考。

TPD4E101 - 4 通道双向低电容 ESD 保护设备 - 高性能TVS二极管 - ESD保护二极管 - 德州仪器

产品特性
  • Provides System-Level ESD Protection for Low-Voltage I/O Interface
  • IEC 61000-4-2 Level 4 ESD Protection
    • ±15 kV Contact Discharge
    • ±15 kV Air-Gap Discharge
  • IEC 61000-4-5 (Surge): 3 A (8/20 µs)
  • I/O Capacitance 4.8 pF (Typical)
  • Dynamic Resistance 0.45 Ω (Typical)
  • DC Breakdown Voltage ±6 V (Minimum)
  • Ultra-Low Leakage Current 100 nA (Maximum) Overtemperature
  • 10-V Clamping Voltage (Maximum at Ipp = 1 A)
  • Industrial Temperature Range: –40°C to 125°C
  • Space Saving DPW package (0.8 mm × 0.8 mm)
产品应用
  • End Equipment:
    • Cell Phones
    • Portable Media Players
    • Wearables
    • Set-Top Boxes
    • eBooks
  • Interfaces:
    • SIM Card Interfaces
    • Audio Lines
    • SD Interfaces
    • Push-Buttons
产品说明

The TPD4E101 device is a four-channel electrostatic discharge (ESD) transient voltage suppression (TVS) diode array in an ultra small 0.8-mm × 0.8-mm package. This TVS protection device offers ±15-kV contact ESD, ±15-kV IEC air-gap protection, and has four back-to-back TVS diodes for bipolar or bidirectional signal support. The 4.8-pF typical line capacitance of this ESD protection diode array is suitable for a wide range of applications supporting data rates up to 700 Mbps. The DPW package is convenient for component placement in space-constrained applications and the 0.48-mm pitch helps save on PCB manufacturing costs.

Typical applications of this ESD protection device are circuit protection for SIM cards, audio lines (microphones, earphones, and speakerphones), SD interfaces and pushbuttons. This ESD clamp is good for providing protection in end-equipment like cell phones, portable media players, wearables, set-top boxes, and eBooks.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPD4E101X2SON (4)0.80 mm × 0.80 mm
