TI产品 - TPD7S019介绍

TPD7S019 - 用于 VGA 端口的 7 通道集成 ESD 解决方案，具有集成电平转换器和

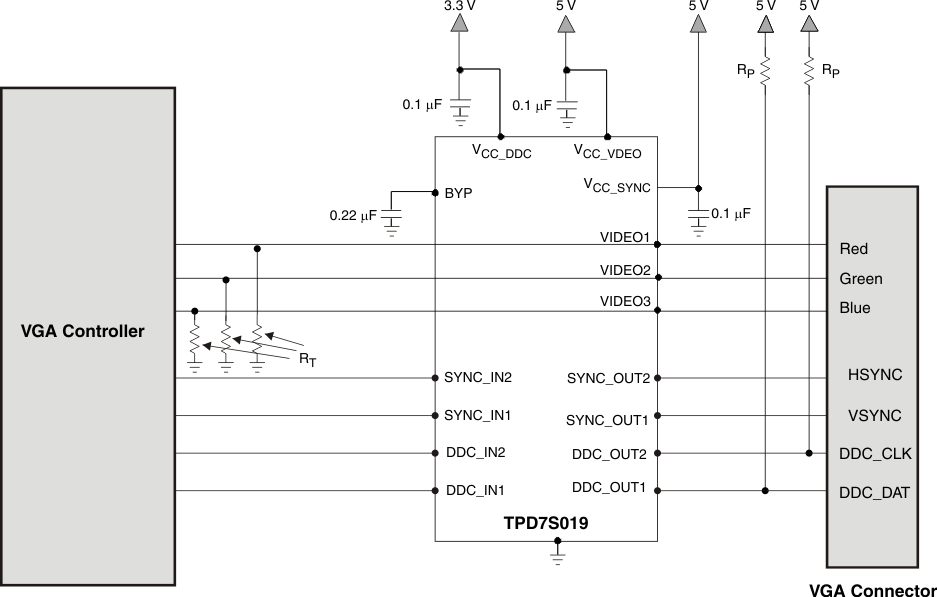

TPD7S019是TI德州仪器公司的一款集成ESD保护产品，TPD7S019是用于 VGA 端口的 7 通道集成 ESD 解决方案，具有集成电平转换器和，本站介绍了TPD7S019的封装应用图解、特点和优点、功能等，并给出了与TPD7S019相关的TI元器件型号供参考。

TPD7S019 - 用于 VGA 端口的 7 通道集成 ESD 解决方案，具有集成电平转换器和 - 集成ESD保护 - ESD保护二极管 - 德州仪器

产品特性
  • 7-Channel ESD Protection Includes ESD Protection, Level-Shifting, Buffering and Sync Impedance Matching
  • Exceeds IEC61000-4-2 (Level 4) ESD Protection to Requirements on the External Pins
    • ±8-kV IEC 61000-4-2 Contact Discharge
  • Very Low Loading Capacitance from ESD Protection Diodes on VIDEO Lines (2.5 pF)
  • 5-V Drivers for HSYNC and VSYNC Lines
  • Integrated Impedance Matching Resistors on Sync Lines
  • Bidirectional Level Shifting N-Channel FETs Provided for DDC_CLK and DDC_DATA Channels
  • Flow-Through Single-In-Line Pin Mapping Ensures no Additional Board Layout Burden While Placing the ESD Protection Chip Near the Connector
产品应用
  • End Equipment:
    • Desktop and Notebook PCs
    • Set Top Boxes
    • TVs
  • Interfaces:
    • VGA
    • DVI-I
产品说明

TPD7S019 device is an integrated electrostatic discharge (ESD) circuit protection solution for VGA and DVI-I connectors. It integrates transient voltage suppression (TVS) protection diodes for VIDEO, DDC and SYNC signals and meets the IEC61000-4-2 standard for ±8-kV contact ESD protection. The TVS diodes only add low capacitances to help signals run at high-speed. It also provides level shifting for the DDC signals saving external level-shifters. Two noninverting drivers on HSYNC and VSYNC convert TTL input levels to CMOS output levels and each buffer has a series termination resistor connected to the SYNC_OUT pin, eliminating the external termination resistors. Three supply lines control the power rails of the VIDEO, DDC and SYNC channels to facilitate interfacing with low voltage video controller ICs in mixed supply-voltage environments. TPD7S019 comes with two package options. The 16-pin RSV is compact and space-saving. The 16-pin DBQ package and pinout are optimized for easy board layout.

This ESD protection product is a good solution to protect the VGA and DVI-I ports for desktop and laptop PCs, set top boxes, TVs and monitors.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPD7S019SSOP (16) 4.90 mm × 3.90 mm
UQFN (16)2.60 mm × 1.80 mm
