TPS3106K33技术文档下载:
TPS3106K33技术文档产品手册下载
TPS3106K33 - 产品图解:
TPS3106K33-超低电源电流/电源电压监控电路
TPS3106K33--监控器和复位IC-电源管理
承诺原装正品
专营TI,真正优化您的供应链
TI产品 - TPS3106K33介绍
TPS3106K33 - 超低电源电流/电源电压监控电路

TPS3106K33是TI公司的一款无产品,TPS3106K33是超低电源电流/电源电压监控电路,本页介绍了TPS3106K33的产品说明、应用、特性等,并给出了与TPS3106K33相关的TI元器件型号供参考。

TPS3106K33 - 超低电源电流/电源电压监控电路 - 无 - 监控器和复位IC - TI公司(Texas Instruments,德州仪器)

产品特性
  • Precision Supply Voltage Supervision Range: 0.9 V, 1.2 V, 1.5 V, 1.6 V, 2 V, and 3.3 V
  • High Trip-Point Accuracy: 0.75%
  • Supply Current of 1.2 μA (Typical)
  • RESET Defined With Input Voltages as Low as 0.4 V
  • Power-On Reset Generator With a Delay Time of 130 ms
  • Push/Pull or Open-Drain RESET Outputs
  • Package Temperature Range: –40°C to 85°C
产品应用
  • Applications Using Low-Power DSPs, Microcontrollers, or Microprocessors
  • Portable and Battery-Powered Equipment
  • Intelligent Instruments
  • Wireless Communication Systems
  • Industrial Equipment
  • Notebook and Desktop Computers

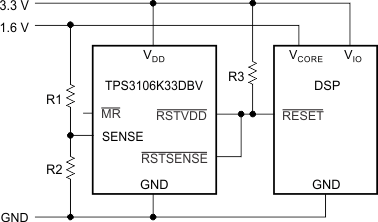

  • Typical Application Schematic

产品说明

The TPS310x and TPS311x families of supervisory circuits provide circuit initialization and timing supervision, primarily for DSP and processor-based systems.

During power-on, RESET is asserted low when the supply voltage (VDD) becomes higher than 0.4 V. Thereafter, the supervisory circuit monitors VDD and keeps the RESET output low as long as VDD remains below the threshold voltage (VIT–). To ensure proper system reset, after VDD surpasses the threshold voltage, an internal timer delays the transition of the RESET signal from low to high for the specified time. When VDD drops below VIT–, the output transitions low again.

All the devices of this family have a fixed-sense threshold voltage (VIT–) set by an internal voltage divider.

The TPS3103 and TPS3106 devices have an active-low, open-drain RESET output and either an integrated power-fail input (PFI) or SENSE input with corresponding outputs for monitoring other voltages. The TPS3110 has an active-low push/pull RESET and a watchdog timer to monitor the operation of microprocessors. All three devices have a manual reset pin that can be used to force the outputs low regardless of the sensed voltages.

The product spectrum is designed for supply voltages of 0.9 V up to 3.3 V. The circuits are available in 6-pin SOT-23 packages. The TPS31xx family is characterized for operation over a temperature range of –40°C to 85°C.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS3103xxxSOT-23 (6)2.90 mm × 1.60 mm
TPS3106xxx
TPS3110xxx
