ISO7221B - 2 通道 1/1 5Mbps 数字隔离器

ISO7221B是TI德州仪器公司的一款无产品，ISO7221B是2 通道 1/1 5Mbps 数字隔离器，本站介绍了ISO7221B的封装应用图解、特点和优点、功能等，并给出了与ISO7221B相关的TI元器件型号供参考。

ISO7221B - 2 通道 1/1 5Mbps 数字隔离器 - 无 - 数字隔离器 - 德州仪器

产品特性

1, 5, 25, and 150-Mbps Signaling Rate Options
- Low Channel-to-Channel Output Skew; 1-nsMax
- Low Pulse-Width Distortion (PWD); 1-nsMax
- Low Jitter Content; 1 ns Typ at 150 Mbps
50 kV/μs Typical Transient Immunity
Operates with 2.8-V (C-Grade), 3.3-V, or 5-V Supplies
4-kV ESD Protection
High Electromagnetic Immunity
–40°C to 125°C Operating Range
Typical 28-Year Life at Rated Voltage (see application report High-Voltage Lifetime of the ISO72x Family of Digital Isolators (SLLA197) and Figure 22)
VDE Basic Insulation with 4000-VPK VIOTM, 560 VPK VIORM per DIN V VDE V 0884-10 (VDE V 0884-10):2006-12 and DIN EN 61010-1 (VDE 0411-1)
2500 VRMS Isolation per UL 1577
CSA Approved for Component Acceptance Notice 5A and IEC 60950-1

产品应用

Industrial Fieldbus
- Modbus
- Profibus™
- DeviceNet™ Data Buses
Computer Peripheral Interface
Servo Control Interface
Data Acquisition

产品说明

The ISO7220x and ISO7221x devices are dual-channel digital isolators. To facilitate PCB layout, the channels are oriented in the same direction in the ISO7220x and in opposite directions in the ISO7221x. These devices have a logic input and output buffer separated by TI’s silicon-dioxide (SiO2) isolation barrier, providing galvanic isolation of up to 4000 VPK per VDE. Used in conjunction with isolated power supplies, these devices block high voltage and isolate grounds, as well as prevent noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry.

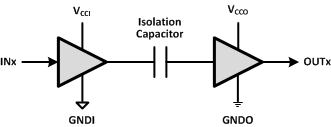

A binary input signal is conditioned, translated to a balanced signal, then differentiated by the capacitive isolation barrier. Across the isolation barrier, a differential comparator receives the logic transition information, then sets or resets a flip-flop and the output circuit accordingly. A periodic update pulse is sent across the barrier to ensure the proper dc level of the output. If this dc-refresh pulse is not received every 4 μs, the input is assumed to be unpowered or not being actively driven, and the failsafe circuit drives the output to a logic high state.

The small capacitance and resulting time constant provide fast operation with signaling rates available from 0 Mbps (DC) to 150 Mbps (The signaling rate of a line is the number of voltage transitions that are made per second expressed in the units bps). The A-option, B-option, and C-option devices have TTL input thresholds and a noise filter at the input that prevents transient pulses from being passed to the output of the device. The M-option devices have CMOS VCC/2 input thresholds and do not have the input noise filter and the additional propagation delay.

The ISO7220x and ISO7221x devices require two supply voltages of 2.8 V (C-Grade), 3.3 V, 5 V, or any combination. All inputs are 5-V tolerant when supplied from a 2.8-V or 3.3-V supply and all outputs are 4-mA CMOS.

The ISO7220x and ISO7221x devices are characterized for operation over the ambient temperature range of –40°C to 125°C.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
ISO7220x	SOIC (8)	4.90 mm × 3.91 mm
ISO7221x	SOIC (8)	4.90 mm × 3.91 mm
