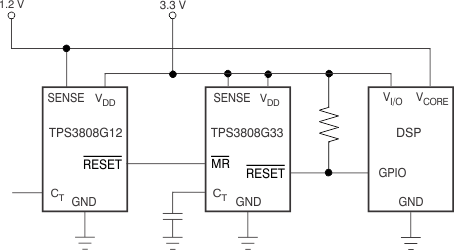

TPS3808G33-Q1 - 产品图解：
TPS3808G33-Q1-汽车类低静态电流可编程延迟监控电路
TPS3808G33-Q1--监控器和复位IC-电源管理
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - TPS3808G33-Q1介绍

TPS3808G33-Q1 - 汽车类低静态电流可编程延迟监控电路

TPS3808G33-Q1是TI德州仪器公司的一款无产品，TPS3808G33-Q1是汽车类低静态电流可编程延迟监控电路，本站介绍了TPS3808G33-Q1的封装应用图解、特点和优点、功能等，并给出了与TPS3808G33-Q1相关的TI元器件型号供参考。

TPS3808G33-Q1 - 汽车类低静态电流可编程延迟监控电路 - 无 - 监控器和复位IC - 德州仪器

产品特性
  • Qualified for Automotive Applications
  • Power-On Reset Generator With Adjustable Delay Time: 1.25ms to 10s
  • Very Low Quiescent Current: 2.4μA Typical
  • High Threshold Accuracy: 0.5% Typical
  • Fixed Threshold Voltages for Standard Voltage Rails From 1.2V to 5V and Adjustable Voltage Down to 0.4V Are Available
  • Manual Reset (MR) Input
  • Open-Drain RESET Output
  • Temperature Range: –40°C to 125°C
  • Small SOT-23 Package
产品应用
  • DSP or Microcontroller Applications
  • FPGA and ASIC Applications
  • Automotive Vision
  • Automotive Radar
产品说明

The TPS3808Gxx-Q1 microprocessor supervisory circuits monitor system voltages from 0.4V to 5V, asserting an open-drain RESET signal when the SENSE voltage drops below a preset threshold or when the manual reset (MR) pin drops to a logic low. The RESET output remains low for the user-adjustable delay time after the SENSE voltage and MR return above their thresholds.

The TPS3808Gxx-Q1 device uses a precision reference to achieve 0.5% threshold accuracy for VIT ≤ 3.3 V. The reset delay time can be set to 20ms by disconnecting the CT pin, 300ms by connecting the CT pin to VDD using a resistor, or can be user-adjusted from 1.25ms to 10s by connecting the CT pin to an external capacitor. The TPS3808Gxx-Q1 has a very low typical quiescent current of 2.4μA, so it is well suited for battery-powered applications. The device is available in a small SOT-23 package and is fully specified over a temperature range of –40°C to 125°C (TJ).

For more information about TI's voltage supervisor portfolio, visit the Supervisor and Reset IC Overview Page page.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS3808Gxx-Q1SOT-23 (6)2.90 mm × 1.60 mm
SON (6)2.00 mm × 2.00 mm
