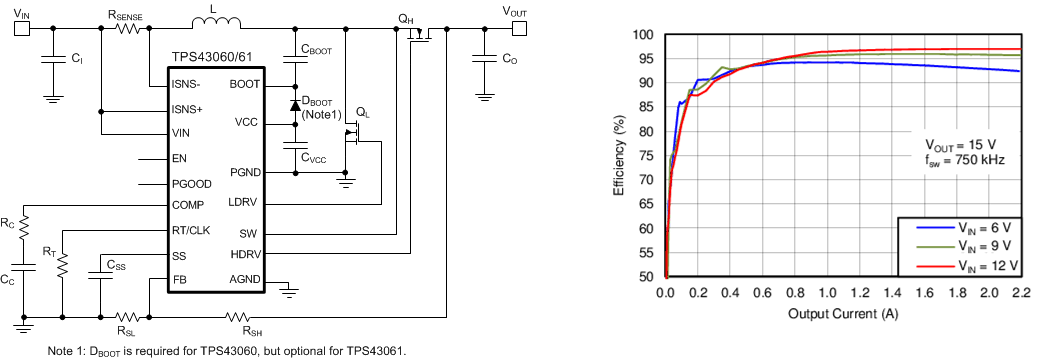

TPS43061 - 产品图解：
TPS43061-4.5V 到 40V 同步升压控制器
TPS43061-控制器（外部开关）-DC/DC开关稳压器-电源管理
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - TPS43061介绍

TPS43061 - 4.5V 到 40V 同步升压控制器

TPS43061是TI德州仪器公司的一款控制器（外部开关）产品，TPS43061是4.5V 到 40V 同步升压控制器，本站介绍了TPS43061的封装应用图解、特点和优点、功能等，并给出了与TPS43061相关的TI元器件型号供参考。

TPS43061 - 4.5V 到 40V 同步升压控制器 - 控制器（外部开关） - DC/DC开关稳压器 - 德州仪器

产品特性
  • 58-V Maximum Output Voltage
  • 4.5 to 38 V (40 V Absolute Max) VIN Range
  • TPS43060: 7.5-V Gate Drive Optimized for Standard Threshold MOSFETs
  • TPS43061: 5.5-V Gate Drive Optimized for Low QgNexFET™ Power MOSFETs
  • Current-Mode Control With Internal Slope Compensation
  • Adjustable Frequency from 50 kHz to 1 MHz
  • Synchronization Capability to External Clock
  • Adjustable Soft-Start Time
  • Inductor DCR or Resistor Current Sensing
  • Output Voltage Power-Good Indicator
  • ±0.8% Feedback Reference Voltage
  • 5-µA Shutdown Supply Current
  • 600-µA Operating Quiescent Current
  • Integrated Bootstrap Diode (TPS43061)
  • Cycle-by-Cycle Current Limit and Thermal Shutdown
  • Adjustable Undervoltage Lockout (UVLO) and Output Overvoltage Protection
  • Small 16-Pin WQFN (3 mm × 3 mm) Package With PowerPAD™
  • –40°C to 150°C Operating TJ Range
产品应用
  • Thunderbolt Port for PCs
  • Automotive Power Systems
  • Synchronous Flyback
  • GaN RF Power Amplifiers
  • Tablet Computer Accessories
  • Battery-Powered Systems
  • 5-V, 12-V, and 24-V DC Bus Power Systems
产品说明

The TPS43060 and TPS43061 are low IQ current-mode synchronous boost controllers with wide-input voltage range from 4.5 to 38 V (40 V absolute max) and boosted output range up to 58 V. Synchronous rectification enables high-efficiency for high-current applications, and lossless inductor DCR sensing further improves efficiency. The resulting low-power losses combined with a 3-mm × 3-mm WQFN-16 package with PowerPAD™ supports high power-density and high-reliability boost converter solutions over extended (–40°C to 150°C) temperature range.

The TPS43060 includes a 7.5-V gate drive supply, which is suitable to drive a broad range of MOSFETs. The TPS43061 has a 5.5-V gate drive supply and driver strength optimized for low Qg NexFET power MOSFETs. Also, TPS43061 provides an integrated bootstrap diode for the high-side gate driver to reduce the external parts count.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS43060RTE (16)3.00 mm × 3.00 mm
TPS43061
