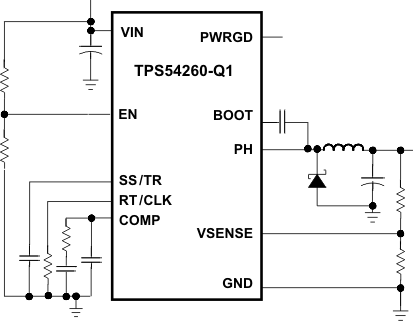

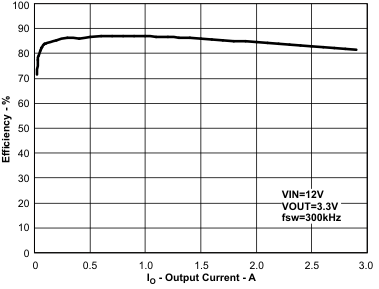

TPS54260-Q1 - 具有 Eco-Mode? 的汽车类 3.5V 至 60V 输入、2.5A、2.5MHz 降压 SWIFT? 转换器

TPS54260-Q1是TI德州仪器公司的一款转换器（集成开关）产品，TPS54260-Q1是具有 Eco-Mode? 的汽车类 3.5V 至 60V 输入、2.5A、2.5MHz 降压 SWIFT? 转换器，本站介绍了TPS54260-Q1的封装应用图解、特点和优点、功能等，并给出了与TPS54260-Q1相关的TI元器件型号供参考。

TPS54260-Q1 - 具有 Eco-Mode? 的汽车类 3.5V 至 60V 输入、2.5A、2.5MHz 降压 SWIFT? 转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
- Device HBM ESD Classification 2
- Device CDM ESD Classification Level C4B
3.5-V to 60-V Input Voltage Range
200-mΩ High-Side MOSFET
High Efficiency at Light Loads With a Pulse Skipping Eco-mode™
138-μA Operating Quiescent Current
1.3-μA Shutdown Current
100-kHz to 2.5-MHz Switching Frequency
Synchronizes to External Clock
Adjustable Slow Start and Sequencing
UV and OV Power Good Output
Adjustable UVLO Voltage and Hysteresis
0.8-V Internal Voltage Reference
10-Pin HVSSOP and 10-Pin 3-mm × 3-mm VSON Packages
Supported by WEBENCH® Software Tool

产品应用

12-V and 24-V Automotive and Industrial Systems
Infotainment, Cluster, and ADAS Applications

产品说明

The TPS54260-Q1 device is a 60-V, 2.5-A, step-down regulator with an integrated high-side MOSFET. Current mode control provides simple external compensation and flexible component selection. A low ripple pulse skip mode reduces the no load, regulated output supply current to 138 μA. Using the enable pin, shutdown supply current is reduced to 1.3-μA, when the enable pin is low.

Under voltage lockout is internally set at 2.5 V, but can be increased using the enable pin. The output voltage startup ramp is controlled by the slow start pin that can also be configured for sequencing and tracking. An open drain power good signal indicates the output is within 94% to 107% of the nominal voltage.

A wide switching frequency range allows efficiency and external component size to be optimized. Frequency fold back and thermal shutdown protects the part during an overload condition.

The TPS54260-Q1 is available in 10-pin thermally-enhanced HVSSOP and 10-pin 3-mm × 3-mm VSON package.

产品器件信息

PART NUMBER	PACKAGE	PACKAGE SIZE
TPS54260-Q1	HVSSOP (10)	3.00 mm × 4.90 mm
TPS54260-Q1	VSON (10)	3.00 mm × 3.00 mm
