• Asynchronous Switch Mode Regulator
• Qualified for Automotive Applications
• 3.6-V to 48-V Operating Range, Withstands Transients up to 60 V
• 2-A Maximum Load Current
• 50-µA Typical Quiescent Current
• 200-kHz to 2.2-MHz Switching Frequency
• 0.8 V ± 1.5% Voltage Reference
• High-Voltage Tolerant Enable Input
• Soft Start on Enable Cycle
• Slew Rate Control on Internal Power Switch
• Low-Power Mode for Light-Load Conditions
• Programmable Delay for Power-On Reset
• External Compensation for Error Amplifier
• Reset Function Filter Time for Fast Negative Transients
• Programmable Overvoltage, Undervoltage Output Monitor
• Thermal Sensing and Shutdown
• Switch Current Limit Protection
• Short Circuit and Overcurrent Protection of FET
• Junction Temperature Range: –40°C to 150°C
• 20-Pin HTSSOP PowerPAD™ Package

• Automotive Telematics and eCall
• Automotive Infotainment and Cluster
  • Head Unit
  • Navigation
  • Display

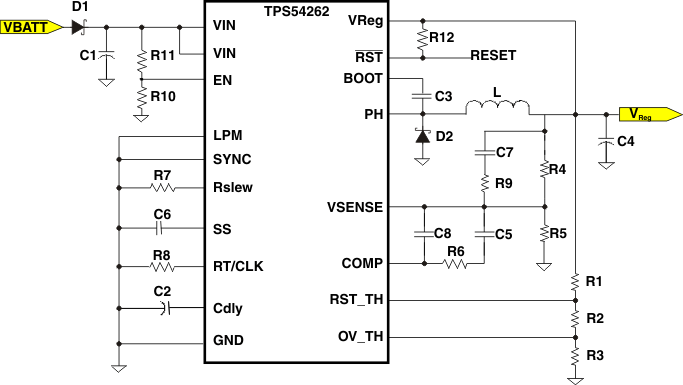

The TPS54262-Q1 device is a 60-V, 2-A step-down switch-mode power supply with a low-power mode and a programmable voltage supervisor with an integrated NMOS switching FET. Integrated input voltage line feed forward topology improves line transient regulation of the voltage mode buck regulator. The regulator has a cycle-by-cycle current limit. The device also features low-power mode operation under light-load conditions which reduces the supply current to 50 µA (typical). By pulling the EN pin low, the supply shutdown current is reduced to 1 µA (typical).

An open-drain reset signal indicates when the nominal output drops below the reset threshold set by an external resistor divider network. The output voltage start-up ramp is controlled by a soft-start capacitor. There is an internal undervoltage shut down which is activated when the input supply ramps down to 2.6 V. The device features a short circuit protection circuit which protects the device during overload condition, and also has a thermal shutdown protection.
