TPS60242 - 产品图解：
TPS60242-具有固定 2.7V 输出用于 VCO 电源的 170 uVrms 零纹波开关电容升压转换器
TPS60242-电荷泵（感应器）-DC/DC开关稳压器-电源管理
TPS60242-TPS6024x 170-μVrms Zero-Ripple Switched Capacitor Buck-Boost Converter for VCO Supply
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - TPS60242介绍

TPS60242 - 具有固定 2.7V 输出用于 VCO 电源的 170 uVrms 零纹波开关电容升压转换器

TPS60242是TI德州仪器公司的一款电荷泵（无感应器）产品，TPS60242是具有固定 2.7V 输出用于 VCO 电源的 170 uVrms 零纹波开关电容升压转换器，本站介绍了TPS60242的封装应用图解、特点和优点、功能等，并给出了与TPS60242相关的TI元器件型号供参考。

TPS60242 - 具有固定 2.7V 输出用于 VCO 电源的 170 uVrms 零纹波开关电容升压转换器 - 电荷泵（无感应器） - DC/DC开关稳压器 - 德州仪器

产品特性
  • Wide Input Voltage Range from 1.8 V to 5.5 V
  • Regulated 2.7-V, 3-V, 3.3-V or 5-V Output Voltage With ±2.5% Accuracy Over Load
  • Up to 25-mA Output Current
  • 170-µVrms Zero Ripple Output: at 20 Hz to 10 MHz Bandwidth
  • Up to 90% Efficiency
  • Minimum Number of External Components
    • No Inductors
    • Only Small Ceramic Chip Capacitors
  • Shutdown Mode: 0.1 µA Typical
  • Thermal Protection and Current Limit
  • Micro-Small 8-Pin VSSOP Package
  • EVM Available TPS60241EVM-194
产品应用
  • VCO and PLL Power for:
    • Smart Phones
    • Mobile Phones
    • PCMCIA Modems
  • Smartcard Readers
  • Digital Cameras
  • MP3 Players
  • SIM Modules
  • Electronic Games
  • Memory Backup
  • Handheld Meters
  • Bias Supplies

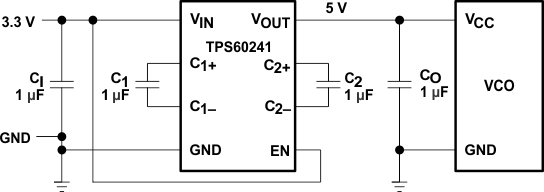

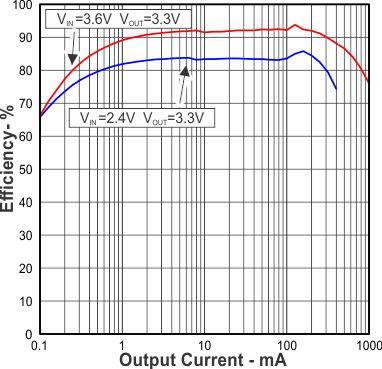

产品说明

The TPS6024x devices are a family of switched capacitor voltage converters, ideally suited for voltage-controlled oscillator (VCO) and phase-locked loop (PLL) applications that require low noise and tight tolerances. Its dual-cap design uses four ceramic capacitors to provide ultra-low output ripple with high efficiency, while eliminating the need for inefficient linear regulators.

The TPS6024x devices operate down to 1.8 V, supporting a 3.3-V, 2.7-V, 3-V output from two-cell, nickel- or alkaline-based chemistries, whereas the TPS60241 works with 2.7-V to 5.5-V input voltage providing a 5-V output. The devices work equally well for low EMI DC–DC step-up conversion without the need for an inductor. The high switching frequency (typical 160 kHz) promotes the use of small surface-mount capacitors, saving board space. The shutdown mode of the converter conserves battery energy.

The devices are thermally protected and current-limited for reliable operation even under persisting fault conditions. Normal quiescent current (ground pin current) is only 250 µA, and typically 0.1 µA in shutdown mode. The TPS6024x devices come in a thin, 8-pin VSSOP package with a component height of only 1.1 mm.

产品器件信息
PART NUMBERPACKAGEOUTPUT VOLTAGE
TPS60240 VSSOP (8)3.3 V
TPS602415 V
TPS602422.7 V
TPS602433 V
