TPS61200 - 采用 3x3 QFN 封装、具有 1.3A 开关和“降压模式”的 0.3V 输入电压升压转换器

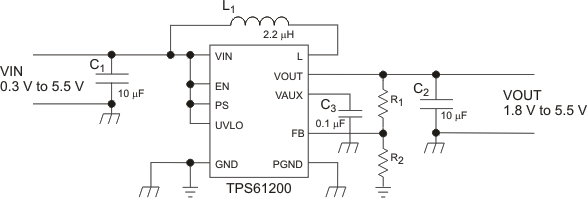

TPS61200是TI德州仪器公司的一款转换器（集成开关）产品，TPS61200是采用 3x3 QFN 封装、具有 1.3A 开关和“降压模式”的 0.3V 输入电压升压转换器，本站介绍了TPS61200的封装应用图解、特点和优点、功能等，并给出了与TPS61200相关的TI元器件型号供参考。

TPS61200 - 采用 3x3 QFN 封装、具有 1.3A 开关和“降压模式”的 0.3V 输入电压升压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

More than 90% Efficiency at
- 300 mA Output Current at 3.3 V (VIN ≥ 2.4 V)
- 600 mA Output Current at 5 V (VIN ≥ 3 V)
Automatic Transition between Boost Mode and Down Conversion Mode
Device Quiescent Current Less than 55 μA
Startup into Full Load at 0.5 V Input Voltage
Operating Input Voltage Range from 0.3 V to 5.5 V
Programmable Undervoltage Lockout Threshold
Output Short Circuit Protection Under all Operating Conditions
Fixed and Adjustable Output Voltage Options from 1.8 V to 5.5 V
Power Save Mode for Improved Efficiency at Low Output Power
Forced Fixed Frequency Operation Possible
Load Disconnect During Shutdown
Overtemperature Protection
Small 3 mm x 3 mm VSON-10 Package

产品应用

All Single-Cell, Two-Cell and Three-Cell Alkaline, NiCd or NiMH or Single-Cell Li Battery Powered Products
Fuel Cell And Solar Cell Powered Products
Portable Audio Players
PDAs
Cellular Phones
Personal Medical Products
White LED Driver

产品说明

The TPS6120x devices provide a power supply solution for products powered by either a single-cell, two-cell, or three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-polymer battery. It is also used in fuel cell or solar cell powered devices where the capability of handling low input voltages is essential. Possible output currents depend on the input to output voltage ratio. The devices provide output currents of up to 600 mA at a 5-V output, while using a single-cell Li-Ion or Li-Polymer battery and discharges it down to 2.6 V. The boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters the Power Save mode to maintain a high efficiency over a wide load current range. The Power Save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The average input current is limited to a maximum value of 1500 mA. The output voltage is programmed by an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery. The device is packaged in a 10-pin VSON package measuring 3 mm x 3 mm.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS6120x	VSON (10)	3.00 mm × 3.00 mm
